WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT

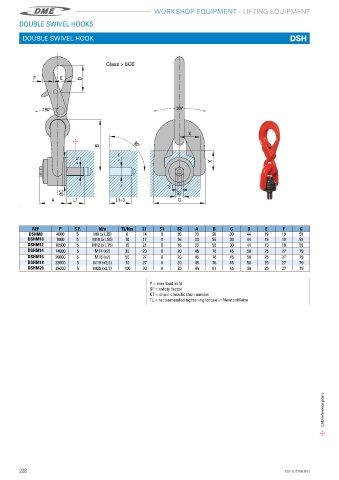

DOUBLE SWIVEL HOOKS

DOUBLE SWIVEL HOOK DSH

Class > 8CE

REF P S.F. M/ø TL/Nm L1 S1 S2 A B C D E F G
DSHM8 4000 5 M8 (x1,25) 6 14 8 16 33 56 30 44 19 19 58
DSHM10 7000 5 M10 (x1,50) 10 17 8 16 33 56 30 44 19 19 58
DSHM12 10500 5 M12 (x1,75) 15 21 8 16 33 56 30 44 19 19 58
DSHM14 14000 5 M14 (x2) 30 23 8 20 45 76 45 58 25 27 79
DSHM16 20000 5 M16 (x2) 50 27 8 20 45 76 45 58 25 27 79
DSHM18 23000 5 M18 (x2,5) 70 27 8 20 45 76 45 58 25 27 79
DSHM20 25000 5 M20 (x2,5) 100 30 8 20 45 81 45 58 25 27 79

P = max load in N
SF = safety factor
KT = chain classification number
TL = recommended tightening torque in NewtonMetre

CAD reference point
