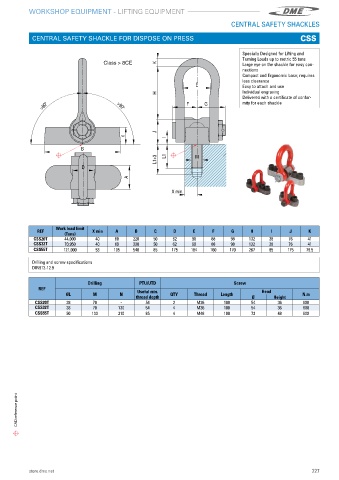

Page 229 - DME Workshop Equipment Catalogue 2023 EN

LIFTING EQUIPMENT
WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
CENTRAL SAFETY SHACKLES

CENTRAL SAFETY SHACKLE FOR DISPOSE ON PRESS CSS

Specially Designed for Lifting and
Turning Loads up to metric 55 tons
Class > 8CE Large eye on the shackle for easy con-
nections
Compact and Ergonomic base; requires
less clearance
Easy to attach and use
Individual engraving
Delivered with a certificate of confor-
mity for each shackle

Work load limit
REF X min A B C D E F G H I J K
(Tons)
CSS20T 44,000 40 80 220 50 62 90 88 98 132 38 76 41
CSS32T 70,950 40 80 330 50 62 90 88 98 132 38 76 41
CSS55T 121,000 53 105 540 85 175 184 160 170 267 85 175 79�5
Drilling and screw specifications
DIN912-12�9

Drilling PTU/UTD Screw
REF Useful min. Head
ØL M N QTY Thread Length N.m
thread depth Ø Height
CSS20T 38 70 - 54 2 M36 100 54 36 600
CSS32T 38 70 130 54 4 M36 100 54 36 600
CSS55T 50 133 210 85 4 M48 100 72 48 600

CAD reference point
