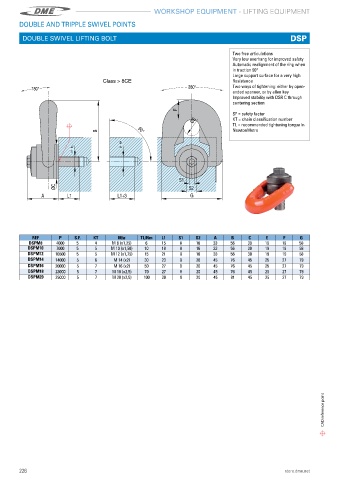

Page 228 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT
DOUBLE AND TRIPPLE SWIVEL POINTS

DOUBLE SWIVEL LIFTING BOLT DSP

Two free articulations
Very low overhang for improved safety
Automatic realignment of the ring when
in traction 90°
Large support surface for a very high
Class > 8CE Resistance
Two ways of tightening: either by open-
ended spanner, or by allen key
Improved stability with DSR C through
centering section

SF = safety factor
KT = chain classification number
TL = recommended tightening torque in
NewtonMetre

REF P S.F. KT M/ø TL/Nm L1 S1 S2 A B C E F G
DSPM8 4000 5 4 M 8 (x1,25) 6 15 8 16 33 56 30 19 19 58
DSPM10 7000 5 5 M 10 (x1,50) 10 18 8 16 33 56 30 19 19 58
DSPM12 10500 5 5 M 12 (x1,75) 15 21 8 16 33 56 30 19 19 58
DSPM14 14000 5 6 M 14 (x2) 30 23 8 20 45 76 45 25 27 79
DSPM16 20000 5 7 M 16 (x2) 50 27 8 20 45 76 45 25 27 79
DSPM18 23000 5 7 M 18 (x2,5) 70 27 8 20 45 76 45 25 27 79
DSPM20 25000 5 7 M 20 (x2,5) 100 30 8 20 45 81 45 25 27 79

CAD reference point
