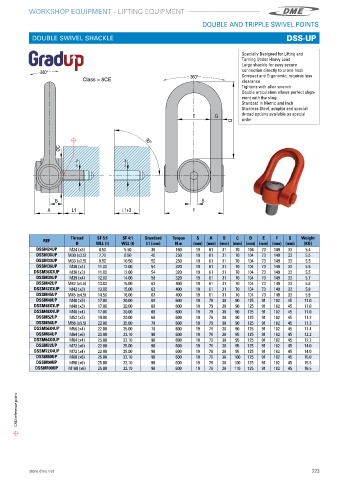

Page 225 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT
DOUBLE AND TRIPPLE SWIVEL POINTS

DOUBLE SWIVEL SHACKLE DSS-UP

Specially Designed for Lifting and
Turning Under Heavy Load
Large shackle for easy secure
connection directly to crane hook
Compact and Ergonomic; requires less
Class > 8CE clearance
Tightens with allen wrench
Double articulation allows perfect align-
ment with the sling
Standard in Metric and Inch
Stainless Steel, adaptor and special
thread options available as special
order

Thread SF 5:1 SF 4:1 Standard Torque S A B C D E F G Weight
REF
Ø WLL (t) WLL (t) L1 (mm) N.m (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (KG)
DSSM24UP M24 (x3) 4�50 5�50 36 160 19 61 31 70 104 73 149 33 5�4
DSSM30UP M30 (x3�5) 7�70 8�50 45 250 19 61 31 70 104 73 149 33 5�5
DSSM33UP M33 (x3�5) 8�50 10�50 50 250 19 61 31 70 104 73 149 33 5�5
DSSM36UP M36 (x4) 11�00 12�00 54 320 19 61 31 70 104 73 149 33 5�5
DSSM36X3UP M36 (x3) 11�00 12�00 54 320 19 61 31 70 104 73 149 33 5�5
DSSM39UP M39 (x4) 12�00 14�00 58 320 19 61 31 70 104 73 149 33 5�7
DSSM42UP M42 (x4�5) 13�00 15�00 63 400 19 61 31 70 104 73 149 33 5�8
DSSM42X3UP M42 (x3) 13�00 15�00 63 400 19 61 31 70 104 73 149 33 5�8
DSSM45UP M45 (x4�5) 14�50 16�00 63 400 19 61 31 70 104 73 149 33 5�9
DSSM48UP M48 (x5) 17�00 20�00 68 600 19 79 38 90 125 91 182 45 11�0
DSSM48X3UP M48 (x3) 17�00 20�00 68 600 19 79 38 90 125 91 182 45 11�0
DSSM48X4UP M48 (x4) 17�00 20�00 68 600 19 79 38 90 125 91 182 45 11�0
DSSM52UP M52 (x5) 19�00 20�00 68 600 19 79 38 90 125 91 182 45 11�2
DSSM56UP M56 (x5�5) 22�00 25�00 78 600 19 79 38 90 125 91 182 45 11�3
DSSM56X4UP M56 (x4) 22�00 25�00 78 600 19 79 38 90 125 91 182 45 11�4
DSSM64UP M64 (x6) 25�00 32�10 90 600 19 79 38 95 125 91 182 45 12�2
DSSM64X4UP M64 (x4) 25�00 32�10 90 600 19 79 38 95 125 91 182 45 12�2
DSSM72UP M72 (x6) 22�00 25�00 90 600 19 79 38 95 125 91 182 45 14�0
DSSM72X4UP M72 (x4) 22�00 25�00 90 600 19 79 38 95 125 91 182 45 14�0
DSSM80UP M80 (x6) 25�00 32�10 90 600 19 79 38 100 125 91 182 45 15�0
DSSM90UP M90 (x6) 25�00 32�10 90 600 19 79 38 100 125 91 182 45 15�5
DSSM100UP M100 (x6) 25�00 32�10 90 600 19 79 38 110 125 91 182 45 16�5

CAD reference point
