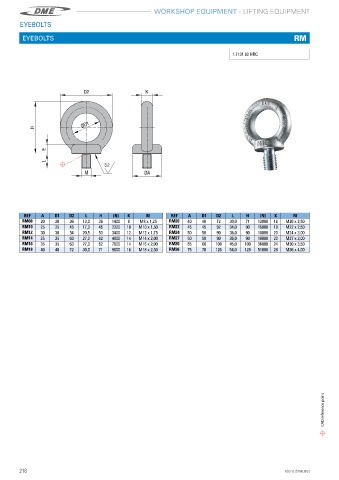

Page 220 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT
EYEBOLTS

EYEBOLTS RM

1�7131 60 HRC

REF A D1 D2 L H (N) K M REF A D1 D2 L H (N) K M
RM08 20 20 36 13,0 36 1400 8 M8 x 1,25 RM20 40 40 72 30,0 71 12000 16 M20 x 2,50
RM10 25 25 45 17,0 45 2300 10 M10 x 1,50 RM22 45 45 92 34,0 90 15000 18 M22 x 2,50
RM12 30 30 54 20,5 53 3400 12 M12 x 1,75 RM24 50 50 90 36,0 90 18000 20 M24 x 3,00
RM14 35 35 63 27,0 62 4900 14 M14 x 2,00 RM27 50 50 90 36,0 90 18000 20 M27 x 3,00
RM16 35 35 63 27,0 62 7000 14 M16 x 2,00 RM30 65 60 108 45,0 109 36000 24 M30 x 3,50
RM18 40 40 72 30,0 71 9000 16 M18 x 2,50 RM36 75 70 126 54,0 128 51000 28 M36 x 4,00

CAD reference point
