LIFTING EQUIPMENT
WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
SIDE PULL HOIST RINGS

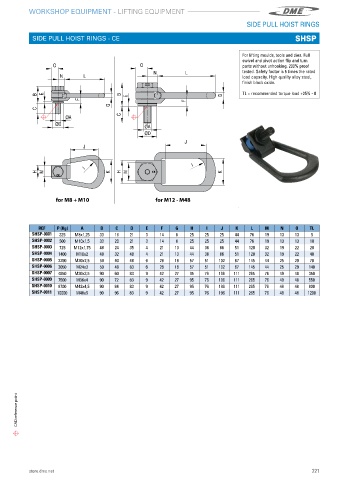

SIDE PULL HOIST RINGS - CE SHSP

For lifting moulds, tools and dies� Full
swivel and pivot action flip and turn
parts without unhooking� 200% proof
tested� Safety factor is 5 times the rated
load capacity� High quality alloy steel,
finish black oxide�
TL = recommended torque load +25% - 0

for M8 + M10 for M12 - M48

REF P (Kg) A B C D E F G H I J K L M N O TL
SHSP-0001 325 M8x1,25 33 16 21 3 14 8 25 25 25 44 76 19 13 13 5
SHSP-0002 500 M10x1,5 33 20 21 3 14 8 25 25 25 44 76 19 13 13 10
SHSP-0003 725 M12x1,75 48 24 35 4 21 13 44 38 86 51 120 32 19 22 20
SHSP-0004 1400 M16x2 48 32 48 4 21 13 44 38 86 51 120 32 19 22 40
SHSP-0005 2290 M20x2,5 59 40 48 6 26 16 57 51 102 67 145 44 25 29 70
SHSP-0006 3050 M24x3 59 48 83 6 26 16 57 51 102 67 145 44 25 29 140
SHSP-0007 4850 M30x3,5 90 60 83 9 42 27 95 76 196 111 265 76 49 48 350
SHSP-0009 7500 M36x4 90 72 83 9 42 27 95 76 196 111 265 76 49 48 550
SHSP-0010 8700 M42x4,5 90 84 83 9 42 27 95 76 196 111 265 76 49 48 800
SHSP-0011 10000 M48x5 90 96 83 9 42 27 95 76 196 111 265 76 49 48 1200

CAD reference point
