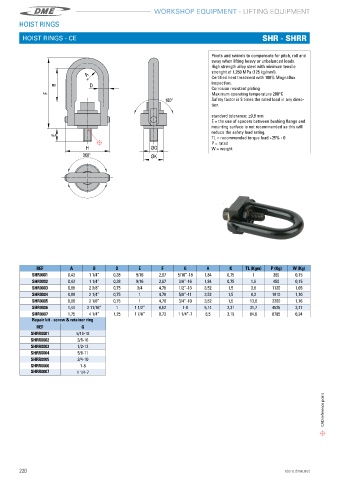

Page 222 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT
HOIST RINGS

HOIST RINGS - CE SHR - SHRR

Pivots and swivels to compensate for pitch, roll and
sway when lifting heavy or unbalanced loads�
High strength alloy steel with minimum tensile
strenght of 1,250 MPa (125 kg/mm²)�
Certified heat treatment with 100% Magnaflux
inspection�
Corrosion resistant plating
Maximum operating temperature 200°C
Safety factor is 5 times the rated load in any direc-
tion�

standard tolerance: ±0,8 mm
E = the use of spacers between bushing flange and
mounting surface is not recommended as this will
reduce the safety load rating�
TL = recommended torque load +25% - 0
P = rated
W = weight

REF A B D E F G H K TL (Kgm) P (Kg) W (Kg)
SHR0001 0,43 1 1/4” 0,38 9/16 2,67 5/16”-18 1,84 0,75 1 360 0,15
SHR0002 0,43 1 1/4” 0,38 9/16 2,67 3/8”-16 1,84 0,75 1,6 450 0,15
SHR0003 0,88 2 3/8” 0,75 3/4 4,78 1/2”-13 3,52 1,5 3,8 1130 1,05
SHR0004 0,88 2 1/4” 0,75 1 4,78 5/8”-11 3,52 1,5 8,3 1810 1,10
SHR0005 0,88 2 1/8” 0,75 1 4,78 3/4”-10 3,52 1,5 13,8 2260 1,16
SHR0006 1,44 2 11/16” 1 1 1/2” 6,52 1-8 5,14 2,31 31,7 4525 3,17
SHR0007 1,75 4 1/4” 1,25 1 7/8” 8,73 1 1/4”-7 6,5 3,19 64,8 6785 6,34
Repair kit - screw & retainer ring
REF G
SHRR0001 5/16-18
SHRR0002 3/8-16
SHRR0003 1/2-13
SHRR0004 5/8-11
SHRR0005 3/4-10
SHRR0006 1-8
SHRR0007 1 1/4-7

CAD reference point
