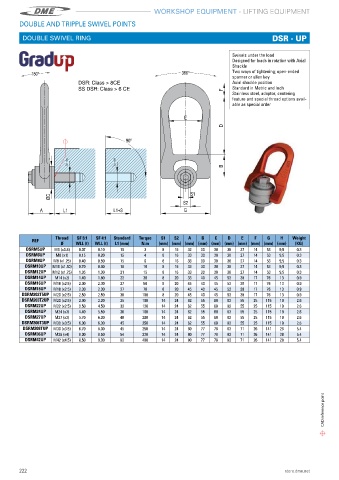

Page 224 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT
DOUBLE AND TRIPPLE SWIVEL POINTS

DOUBLE SWIVEL RING DSR - UP

Swivels under the load
Designed for loads in rotation with Axial
Shackle
Two ways of tightening; open-ended
spanner or allen key
DSR: Class > 8CE Axial shackle position
SS DSR: Class > 6 CE Standard in Metric and Inch
Stainless steel, adaptor, centering
feature and special thread options avail-
able as special order

Thread SF 5:1 SF 4:1 Standard Torque S1 S2 A B C D E F G H Weight
REF
Ø WLL (t) WLL (t) L1 (mm) N.m (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (KG)
DSRM5UP M5 (x0�8) 0�07 0�10 15 3 8 16 32 30 30 38 27 14 53 9,5 0�3
DSRM6UP M6 (x1) 0�15 0�20 15 4 8 16 33 30 30 38 27 14 53 9,5 0�3
DSRM8UP M8 (x1�25) 0�40 0�50 15 6 8 16 33 30 30 38 27 14 53 9,5 0�3
DSRM10UP M10 (x1�50) 0�70 0�90 18 10 8 16 33 30 30 38 27 14 53 9,5 0�3
DSRM12UP M12 (x1�75) 1�05 1�30 21 15 8 16 33 30 30 38 27 14 53 9,5 0�3
DSRM14UP M14 (x2) 1�40 1�80 23 30 8 20 33 40 45 53 38 17 76 13 0�9
DSRM16UP M16 (x2�5) 2�00 2�30 27 50 8 20 45 40 45 53 38 17 76 13 0�9
DSRM18UP M18 (x2�5) 2�30 2�30 27 70 8 20 45 40 45 53 38 17 76 13 0�9
DSRM202T5UP M20 (x2�5) 2�50 2�50 30 100 8 20 45 40 45 53 38 17 76 13 0�9
DSRM203T2UP M20 (x2�5) 2�90 3�20 25 100 14 24 62 55 60 83 55 25 115 19 2�6
DSRM22UP M22 (x2�5) 3�50 4�50 33 120 14 24 62 55 60 83 55 25 115 19 2�6
DSRM24UP M24 (x3) 4�40 5�50 36 160 14 24 62 55 60 83 55 25 115 19 2�6
DSRM27UP M27 (x3) 5�70 6�00 40 200 14 24 62 55 60 83 55 25 115 19 2�6
DSRM306T3UP M30 (x3�5) 6�00 6�30 45 250 14 24 62 55 60 83 55 25 115 19 2�6
DSRM308TUP M30 (x3�5) 6�70 8�00 45 250 14 24 80 77 78 83 71 26 141 28 5�4
DSRM36UP M36 (x4) 8�00 8�50 54 320 14 24 80 77 78 83 71 26 141 28 5�4
DSRM42UP M42 (x4�5) 8�50 9�00 63 400 14 24 80 77 78 83 71 26 141 28 5�4

CAD reference point
