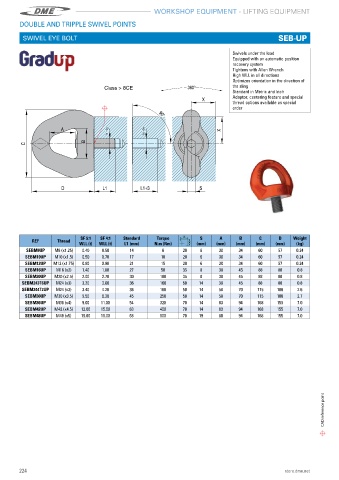

Page 226 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT
DOUBLE AND TRIPPLE SWIVEL POINTS

SWIVEL EYE BOLT SEB-UP

Swivels under the load
Equipped with an automatic position
recovery system
Tightens with Allen Wrench
High WLL in all directions
Optimizes orientation in the direction of
Class > 8CE the sling
Standard in Metric and Inch
Adaptor, centering feature and special
thread options available as special
order

SF 5:1 SF 4:1 Standard Torque S A B C D Weight
REF Thread
WLL (t) WLL (t) L1 (mm) N.m (Nm) (mm) (mm) (mm) (mm) (mm) (kg)

SEBM8UP M8 (x1�25) 0�40 0�50 14 6 20 6 30 34 60 57 0�24
SEBM10UP M10 (x1�5) 0�50 0�70 17 10 20 6 30 34 60 57 0�24
SEBM12UP M12 (x1�75) 0�80 0�90 21 15 20 6 30 34 60 57 0�24
SEBM16UP M16 (x2) 1�40 1�80 27 50 35 8 38 45 88 80 0�8
SEBM20UP M20 (x2�5) 2�00 2�70 30 100 35 8 38 45 88 80 0�8
SEBM243T6UP M24 (x3) 3�20 3�80 36 160 50 14 38 45 88 80 0�8
SEBM244T2UP M24 (x3) 3�40 4�20 36 160 50 14 58 70 115 106 2�6
SEBM30UP M30 (x3�5) 5�50 6�30 45 250 50 14 58 70 115 106 2�7
SEBM36UP M36 (x4) 9�00 11�00 54 320 70 14 83 94 168 155 7�0
SEBM42UP M42 (x4�5) 12�00 15�00 63 400 70 14 83 94 168 155 7�0
SEBM48UP M48 (x5) 15�00 16�00 68 600 70 19 80 94 168 155 7�0

CAD reference point
