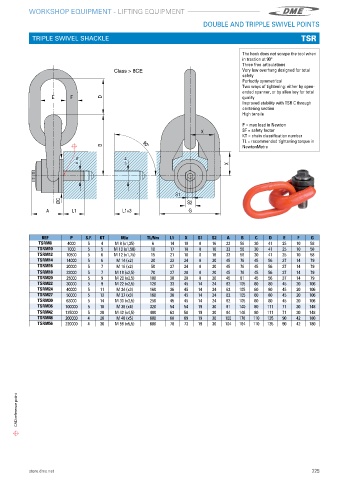

Page 227 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - LIFTING EQUIPMENT
LIFTING EQUIPMENT
DOUBLE AND TRIPPLE SWIVEL POINTS

TRIPLE SWIVEL SHACKLE TSR

The hook does not scrape the tool when
in traction at 90°
Three free articulations
Class > 8CE Very low overhang designed for total
safety
Perfectly symmetrical
Two ways of tightening: either by open-
ended spanner, or by allen key for total
quality
Improved stability with TSR C through
centering section
High tensile

P = max load in Newton
SF = safety factor
KT = chain classification number
TL = recommended tightening torque in
NewtonMetre

REF P S.F. KT M/ø TL/Nm L1 X S1 S2 A B C D E F G
TSRM8 4000 5 4 M 8 (x1,25) 6 14 18 8 16 33 56 30 41 25 10 58
TSRM10 7000 5 5 M 10 (x1,50) 10 17 18 8 16 33 56 30 41 25 10 58
TSRM12 10500 5 6 M 12 (x1,75) 15 21 18 8 16 33 56 30 41 25 10 58
TSRM14 14000 5 6 M 14 (x2) 30 23 24 8 20 45 76 45 56 37 14 79
TSRM16 20000 5 7 M 16 (x2) 50 27 24 8 20 45 76 45 56 37 14 79
TSRM18 23000 5 7 M 18 (x2,5) 70 27 28 8 20 45 76 45 56 37 14 79
TSRM20 25000 5 9 M 20 (x2,5) 100 30 28 8 20 45 81 45 56 37 14 79
TSRM22 30000 5 9 M 22 (x2,5) 120 33 45 14 24 62 105 60 80 45 20 106
TSRM24 40000 5 11 M 24 (x3) 160 36 45 14 24 62 105 60 80 45 20 106
TSRM27 50000 5 13 M 27 (x3) 160 36 45 14 24 62 105 60 80 45 20 106
TSRM30 63000 5 14 M 30 (x3,5) 250 45 45 14 24 62 105 60 80 45 20 106
TSRM36 100000 5 18 M 36 (x4) 320 54 54 19 30 81 140 80 111 71 30 148
TSRM42 125000 5 20 M 42 (x4,5) 400 63 58 19 30 84 146 80 111 71 30 148
TSRM48 200000 4 26 M 48 (x5) 600 68 69 19 30 100 178 110 135 90 42 180
TSRM56 220000 4 36 M 56 (x5,5) 600 78 73 19 30 104 184 110 135 90 42 180

CAD reference point
