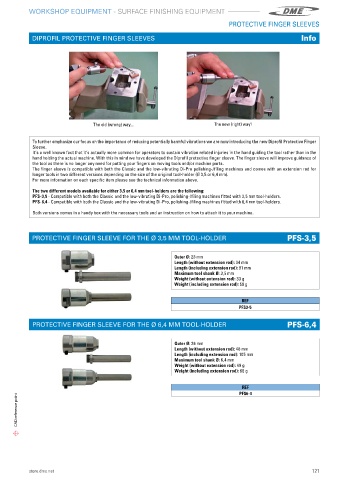

Page 123 - DME Workshop Equipment Catalogue 2023 EN

SURF
A
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
PROTECTIVE FINGER SLEEVES
DIPROFIL PROTECTIVE FINGER SLEEVES Info

The old (wrong) way��� The new (right) way!

To further emphasize our focus on the importance of reducing potentially harmful vibrations we are now introducing the new Diprofil Protective Finger
Sleeve�
It’s a well known fact that it’s actually more common for operators to sustain vibration related injuries in the hand guiding the tool rather than in the
hand holding the actual machine� With this in mind we have developed the Diprofil protective finger sleeve� The finger sleeve will improve guidance of
the tool as there is no longer any need for putting your fingers on moving tools and/or machine parts�
The finger sleeve is compatible with both the Classic and the low-vibrating Di-Pro polishing-/filing machines and comes with an extension rod for
longer tools in two different versions depending on the size of the original tool-holder (Ø 3,5 or 6,4 mm)�
For more information on each specific item please see the technical information above�
The two different models available for either 3,5 or 6,4 mm tool-holders are the following:
PFS-3,5 - Compatible with both the Classic and the low-vibrating Di-Pro, polishing-/filing machines fitted with 3,5 mm tool-holders�
PFS-6,4 - Compatible with both the Classic and the low-vibrating Di-Pro, polishing-/filing machines fitted with 6,4 mm tool-holders�
Both versions comes in a handy box with the necessary tools and an instruction on how to attach it to your machine�

PROTECTIVE FINGER SLEEVE FOR THE Ø 3,5 MM TOOL-HOLDER PFS-3,5

Outer Ø: 23 mm
Length (without extension rod): 34 mm
Length (including extension rod): 91 mm
Maximum tool shank Ø: 3,5 mm
Weight (without extension rod): 33 g
Weight (including extension rod): 50 g

REF
PFS3-5

PROTECTIVE FINGER SLEEVE FOR THE Ø 6,4 MM TOOL-HOLDER PFS-6,4

Outer Ø: 26 mm
Length (without extension rod): 48 mm
Length (including extension rod): 105 mm
Maximum tool shank Ø: 6,4 mm
Weight (without extension rod): 49 g
Weight (including extension rod): 66 g

REF
PFS6-4
CAD reference point
