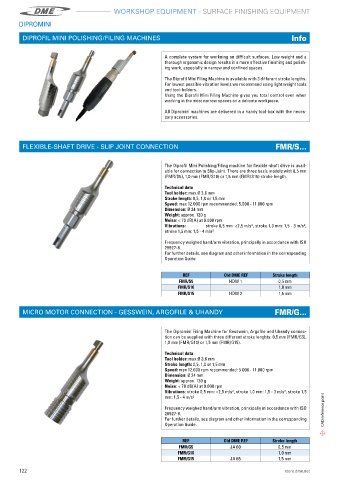

Page 124 - DME Workshop Equipment Catalogue 2023 EN

SURF
A
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
DIPROMINI
DIPROFIL MINI POLISHING/FILING MACHINES Info

A complete system for workning on difficult surfaces� Low weight and a
thorough ergonomic design results in a more effective finishing and polish-
ing work, especially in narrow and confined spaces�

The Diprofil Mini Filing Machine is available with 3 different stroke lengths�
For lowest possible vibration levels we recommend using light weight tools
and tool-holders�
Using the Diprofil Mini Filing Machine gives you total control even when
working in the most narrow spaces on a delicate workpiece�

All Dipromini machines are delivered in a handy tool-box with the neces-
sary accessories�

FLEXIBLE-SHAFT DRIVE - SLIP JOINT CONNECTION FMR/S...

The Diprofil Mini Polishing/Filing machine for flexible-shaft drive is avail-
able for connection to Slip Joint� There are three basic models with 0,5 mm
(FMR/S5), 1,0 mm (FMR/S10) or 1,5 mm (FMR/S15) stroke length�
Technical data
Tool holder: max Ø 3,6 mm
Stroke length: 0,5, 1,0 or 1,5 mm
Speed: max 12�000 rpm recommended: 5�000 - 11�000 rpm
Dimension: Ø 24 mm
Weight: approx� 120 g
Noise: < 70 dB(A) at 9�000 rpm
Vibrations: stroke 0,5 mm: <2,5 m/s², stroke 1,0 mm: 1,5 - 3 m/s²,
stroke 1,5 mm: 1,5 - 4 m/s²

Frequency weighed hand/arm vibration, principally in accordance with ISO
28927-8�
For further details, see diagram and other information in the corresponding
Operation Guide�

REF Old DME REF Stroke length
FMR/S5 HDW 1 0,5 mm
FMR/S10 1,0 mm
FMR/S15 HDW 2 1,5 mm

MICRO MOTOR CONNECTION - GESSWEIN, ARGOFILE & UHANDY FMR/G...

The Dipromini Filing Machine for Gesswein, Argofile and Uhandy connec-
tion can be supplied with three different stroke lenghts: 0,5 mm (FMR/G5),
1,0 mm (FMR/G10) or 1,5 mm (FMR/G15)�

Technical data
Tool holder: max Ø 3,6 mm
Stroke length: 0,5, 1,0 or 1,5 mm
Speed: max 12�000 rpm recommended: 5�000 - 11�000 rpm
Dimension: Ø 24 mm
Weight: approx� 120 g
Noise: < 70 dB(A) at 9�000 rpm
Vibrations: stroke 0,5 mm: <2,5 m/s², stroke 1,0 mm: 1,5 - 3 m/s², stroke 1,5
mm: 1,5 - 4 m/s²

Frequency weighed hand/arm vibration, principally in accordance with ISO CAD reference point
28927-8�
For further details, see diagram and other information in the corresponding
Operation Guide�

REF Old DME REF Stroke length
FMR/G5 JA 60 0,5 mm
FMR/G10 1,0 mm
FMR/G15 JA 65 1,5 mm
