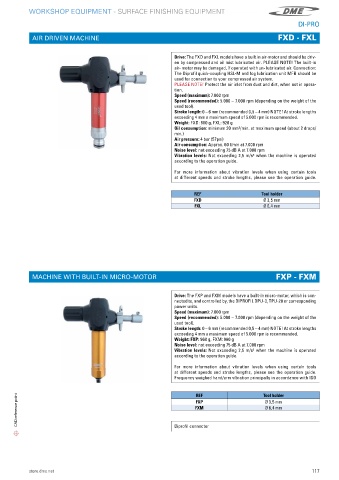

Page 119 - DME Workshop Equipment Catalogue 2023 EN

SURF
A
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
DI-PRO
AIR DRIVEN MACHINE FXD - FXL

Drive: The FXD and FXL models have a built in air-motor and should be driv-
en by compressed and oil mist lubricated air� PLEASE NOTE! The built-in
air- motor may be damaged, if operated with un- lubricated air� Connection:
The Diprofil quick-coupling HSL-M and fog lubrication unit MFB should be
used for connection to your compressed air system�
PLEASE NOTE! Protect the air inlet from dust and dirt, when not in opera-
tion�
Speed (maximum): 7�000 rpm
Speed (recommended): 5�000 – 7�000 rpm (depending on the weight of the
used tool)�
Stroke length: 0 – 6 mm (recommended 0,5 – 4 mm) NOTE! At stroke lengths
exceeding 4 mm a maximum speed of 5�000 rpm is recommended�
Weight: FXD: 880 g, FXL: 920 g
Oil consumption: minimum 30 mm³/min� at maximum speed (about 2 drops/
min�)
Air pressure: 4 bar (57psi)
Air consumption: Approx� 60 l/min at 7�000 rpm
Noise level: not exceeding 75 dB A at 7�000 rpm
Vibration levels: Not exceeding 2,5 m/s² when the machine is operated
according to the operation guide�
For more information about vibration levels when using certain tools
at different speeds and stroke lengths, please see the operation guide�

REF Tool holder
FXD Ø 3,5 mm
FXL Ø 6,4 mm

MACHINE WITH BUILT-IN MICRO-MOTOR FXP - FXM

Drive: The FXP and FXM models have a built-in micro-motor, which is con-
nected to, and controlled by, the DIPROFIL DPU-3, TPU-20 or corresponding
power units�
Speed (maximum): 7�000 rpm
Speed (recommended): 5�000 – 7�000 rpm (depending on the weight of the
used tool)�
Stroke length: 0 – 6 mm (recommended 0,5 – 4 mm) NOTE! At stroke lengths
exceeding 4 mm a maximum speed of 5�000 rpm is recommended�
Weight: FXP: 960 g, FXM: 980 g
Noise level: not exceeding 75 dB A at 7�000 rpm
Vibration levels: Not exceeding 2,5 m/s² when the machine is operated
according to the operation guide�

For more information about vibration levels when using certain tools
at different speeds and stroke lengths, please see the operation guide�
Frequency weighed hand/arm vibration principally in accordance with ISO

REF
CAD reference point Diprofil connector Tool holder
Ø 3,5 mm
FXP
Ø 6,4 mm
FXM
