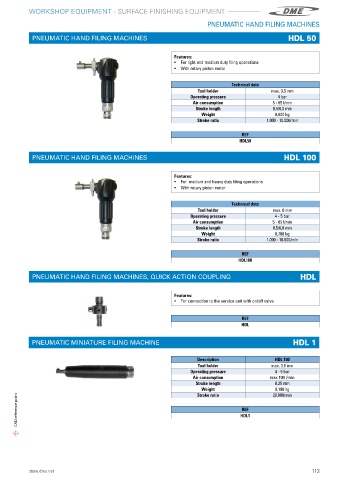

Page 115 - DME Workshop Equipment Catalogue 2023 EN

CE FINISHING EQUIPMENT
A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
PNEUMATIC HAND FILING MACHINES
PNEUMATIC HAND FILING MACHINES HDL 50

Features:
• For light and medium duty filing operations
• With rotary piston motor

Technical data
Tool holder max� 3,5 mm
Operating pressure 4 bar
Air consumption 5 - 65 l/min
Stroke length 0,5/6,0 mm
Weight 0,600 kg
Stroke ratio 1�000 - 10�000/min

REF
HDL50

PNEUMATIC HAND FILING MACHINES HDL 100

Features:
• For medium and heavy duty filing operations
• With rotary piston motor

Technical data
Tool holder max� 6 mm
Operating pressure 4 - 5 bar
Air consumption 5 - 65 l/min
Stroke length 0,5/6,0 mm
Weight 0,700 kg
Stroke ratio 1�000 - 10�000/min

REF
HDL100

PNEUMATIC HAND FILING MACHINES, QUICK ACTION COUPLING HDL

Features:
• For connection to the service unit with on/off valve

REF
HDL

PNEUMATIC MINIATURE FILING MACHINE HDL 1

Description HDL 100
Tool holder max� 3�6 mm
Operating pressure 4 - 5 bar
Air consumption max 100 l/min
Stroke length 0�25 mm
0,190 kg
Weight 20�000/min
Stroke ratio
CAD reference point HDL1
REF
