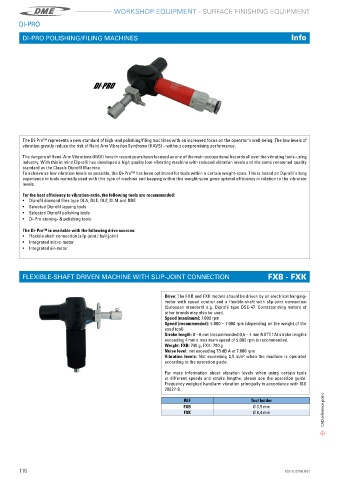

Page 118 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
SURF
A
CE FINISHING EQUIPMENT
DI-PRO
DI-PRO POLISHING/FILING MACHINES Info

The Di-Pro™ represents a new standard of high-end polishing/filing machines with an increased focus on the operator’s well-being� The low levels of
vibration greatly reduce the risk of Hand Arm Vibration Syndrome (HAVS) – without compromising performance�

The dangers of Hand-Arm Vibrations (HAV) have in recent years been focused as one of the main occupational hazards all over the vibrating tools-using
industry� With this in mind Diprofil has developed a high quality low-vibrating machine with reduced vibration levels and the same renowned quality
standard as the Classic Diprofil Machine�
To achieve as low vibration levels as possible, the Di-Pro™ has been optimized for tools within a certain weight-span� This is based on Diprofil´s long
experience in tools normally used with this type of machine and keeping within this weight-span gives optimal efficiency in relation to the vibration
levels�
For the best efficiency to vibration-ratio, the following tools are recommended:
• Diprofil diamond files type DLA, DLE, DLF, DLM and DBE
• Selected Diprofil lapping tools
• Selected Diprofil polishing tools
• Di-Pro stoning- & polishing tools

The Di-Pro™ is available with the following drive sources:
• Flexible shaft connection (slip-joint / ball-joint)
• Integrated micro-motor
• Integrated air-motor

FLEXIBLE-SHAFT DRIVEN MACHINE WITH SLIP-JOINT CONNECTION FXB - FXK

Drive: The FXB and FXK models should be driven by an electrical hanging-
motor with speed control and a flexible-shaft with slip-joint connection
(European standard) e�g� Diprofil type DSE-47� Corresponding motors of
other brands may also be used�
Speed (maximum): 7�000 rpm
Speed (recommended): 5�000 – 7�000 rpm (depending on the weight of the
used tool)�
Stroke length: 0 – 6 mm (recommended 0,5 – 4 mm NOTE! At stroke lengths
exceeding 4 mm a maximum speed of 5�000 rpm is recommended�
Weight: FXB: 740 g, FXK: 780 g
Noise level: not exceeding 75 dB A at 7�000 rpm
Vibration levels: Not exceeding 2,5 m/s² when the machine is operated
according to the operation guide�
For more information about vibration levels when using certain tools
at different speeds and stroke lengths, please see the operation guide�
Frequency weighed hand/arm vibration principally in accordance with ISO
28927-8�
CAD reference point
REF Tool holder
FXB Ø 3,5 mm
FXK Ø 6,4 mm
