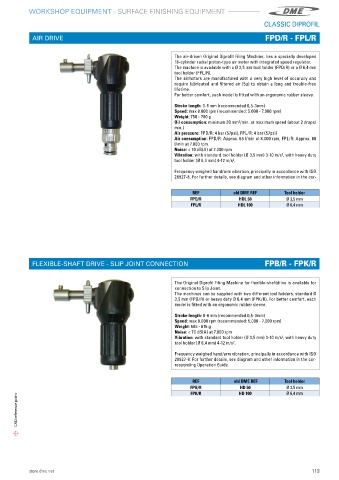

CLASSIC DIPROFIL
AIR DRIVE FPD/R - FPL/R

The air-driven Original Diprofil Filing Machine, has a specially developed
18-cylinder radial piston-type air motor with integrated speed regulator�
The machine is available with a Ø 3,5 mm tool holder (FPD/R) or a Ø 6,4 mm
tool holder (FPL/R)�
The airmotors are manufactured with a very high level of accuracy and
require lubricated and filtered air (5µ) to obtain a long and trouble-free
lifetime�
For better comfort, each model is fitted with an ergonomic rubber sleeve�
Stroke length: 0-6 mm (recommended 0,5-3mm)
Speed: max 8�000 rpm (recommended: 5�000 - 7�000 rpm)
Weight: 750 - 780 g
Oil consumption: minimum 30 mm³/min� at maximum speed (about 2 drops/
min�)
Air pressure: FPD/R: 4 bar (57psi), FPL/R: 4 bar (57psi)
Air consumption: FPD/R: Approx� 65 l/min at 8�000 rpm, FPL/R: Approx� 60
l/min at 7�000 rpm
Noise: < 70 dB(A) at 7�000 rpm
Vibration: with standard tool holder (Ø 3,5 mm) 3-10 m/s², with heavy duty
tool holder (Ø 6,4 mm) 4-12 m/s²�

Frequency weighed hand/arm vibration, principally in accordance with ISO
28927-8� For further details, see diagram and other information in the cor-

REF old DME REF Tool holder
FPD/R HDL 50 Ø 3,5 mm
FPL/R HDL 100 Ø 6,4 mm

FLEXIBLE-SHAFT DRIVE - SLIP JOINT CONNECTION FPB/R - FPK/R

The Original Diprofil Filing Machine for flexible-shaftdrive is available for
connection to Slip Joint�
The machines can be supplied with two different tool holders, standard Ø
3,5 mm (FPB/R) or heavy duty Ø 6,4 mm (FPK/R)� For better comfort, each
model is fitted with an ergonomic rubber sleeve�
Stroke length: 0-6 mm (recommended 0,5-3mm)
Speed: max 8�000 rpm (recommended: 5�000 - 7�000 rpm)
Weight: 585 - 615 g
Noise: < 70 dB(A) at 7�000 rpm
Vibration: with standard tool holder (Ø 3,5 mm) 3-10 m/s², with heavy duty
tool holder (Ø 6,4 mm) 4-12 m/s²�

Frequency weighed hand/arm vibration, principally in accordance with ISO
28927-8� For further details, see diagram and other information in the cor-
responding Operation Guide�

REF old DME REF Tool holder
HD 50
FPB/R HD 100 Ø 3,5 mm
Ø 6,4 mm
FPK/R
