WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
DI-PRO SPARE PARTS
2 1.
3.

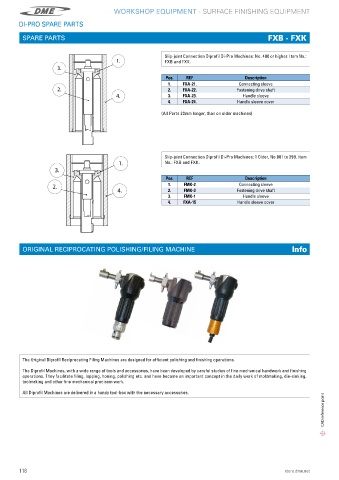

SPARE PARTS FXB - FXK
1
Slip-joint Connection Diprofil Di-Pro Machines: No� 400 or higher� Item No�:
2. 1. FXB and FXK�
3
2
4
3. 4.
1
Pos. REF Description
1. FXA-21. Connecting sleeve
2. 2. FXA-22. Fastening drive shaft
3
4
4. 3. FXA-23. Handle sleeve
4. FXA-24. Handle sleeve cover
(All Parts 20mm longer, than on older machines)

Slip-joint Connection Diprofil Di-Pro Machines: 1 Older, No�001 to 399� Item
21. No�: FXB and FXK�
3.
1
Pos. REF Description
21.
2. 3. 1. FMK-2 Connecting sleeve
3
1 4 4. 2. FMK-3 Fastening drive shaft
3. FMK-1 Handle sleeve
2. 4 4. 4. FXA-15 Handle sleeve cover
3

ORIGINAL RECIPROCATING POLISHING/FILING MACHINE Info

The Original Diprofil Reciprocating Filing Machines are designed for efficient polishing and finishing operations�

The Diprofil Machines, with a wide range of tools and accessories, have been developed by careful studies of fine mechanical handwork and finishing
operations� They facilitate filing, lapping, honing, polishing etc� and have become an important concept in the daily work of moldmaking, die-sinking,
toolmaking and other fine mechanical precision work�
All Diprofil Machines are delivered in a handy tool-box with the necessary accessories�
