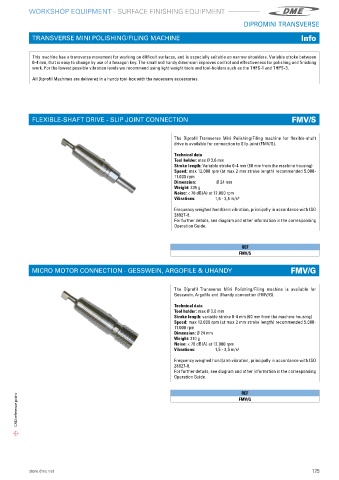

Page 127 - DME Workshop Equipment Catalogue 2023 EN

SURF
A
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
DIPROMINI TRANSVERSE
TRANSVERSE MINI POLISHING/FILING MACHINE Info

This machine has a transverse movement for working on difficult surfaces, and is especially suitable on narrow shoulders� Variable stroke between
0-4 mm, that is easy to change by use of a hexagon key� The small and handy dimension improves control and effectiveness for polishing and finishing
work� For the lowest possible vibration levels we recommend using light weight tools and tool-holders such as the THFS-1 and THPS-3�

All Diprofil Machines are delivered in a handy tool-box with the necessary accessories�

FLEXIBLE-SHAFT DRIVE - SLIP JOINT CONNECTION FMV/S

The Diprofil Transverse Mini Polishing/Filing machine for flexible-shaft
drive is available for connection to Slip-joint (FMV/S)�

Technical data
Tool holder: max Ø 3,6 mm
Stroke length: Variable stroke 0-4 mm (60 mm from the machine housing)
Speed: max 12�000 rpm (at max 2 mm stroke length) recommended 5�000-
11�000 rpm
Dimension: Ø 24 mm
Weight: 235 g
Noise: < 78 dB(A) at 12�000 rpm
Vibrations: 1,5 - 3,5 m/s²

Frequency weighed hand/arm vibration, principally in accordance with ISO
28927-8�
For further details, see diagram and other information in the corresponding
Operation Guide�

REF
FMV/S

MICRO MOTOR CONNECTION - GESSWEIN, ARGOFILE & UHANDY FMV/G

The Diprofil Transverse Mini Polishing/Filing machine is available for
Gesswein, Argofile and Uhandy connection (FMV/G)�
Technical data
Tool holder: max Ø 3,6 mm
Stroke length: variable stroke 0-4 mm (60 mm from the machine housing)
Speed: max 12�000 rpm (at max 2 mm stroke length) recommended 5�000-
11�000 rpm
Dimension: Ø 24 mm
Weight: 210 g
Noise: < 78 dB(A) at 12�000 rpm
Vibrations: 1,5 - 3,5 m/s²

Frequency weighed hand/arm vibration, principally in accordance with ISO
28927-8�
For further details, see diagram and other information in the corresponding
Operation Guide�

REF
CAD reference point
FMV/G
