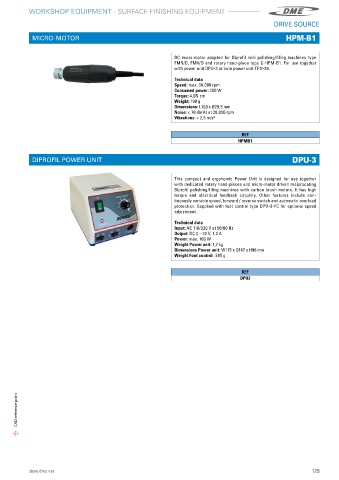

Page 131 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
DRIVE SOURCE
MICRO-MOTOR HPM-B1

DC micro-motor adapted for Diprofil mini polishing/filing machines type
FMR/D, FMV/D and rotary hand-piece type C-HPM-B1� For use together
with power unit DPU-3 or twin power unit TPU-20�

Technical data
Speed: max� 38�000 rpm
Consumed power: 100 W
Torque: 4,0N cm
Weight: 190 g
Dimensions: L100 x Ø29,5 mm
Noise: < 70 db(A) at 38�000 rpm
Vibrations: < 2,5 m/s²

REF
HPMB1

DIPROFIL POWER UNIT DPU-3

This compact and ergonomic Power Unit is designed for use together
with dedicated rotary hand-pieces and micro-motor driven reciprocating
Diprofil polishing/filing machines with carbon brush motors� It has high
torque and electrical feedback circuitry� Other features include con-
tinuously variable speed, forward / reverse switch and automatic overload
protection� Supplied with foot control type DPU-3-FC for optional speed
adjustment�

Technical data
Input: AC 110/220 V at 50/60 Hz
Output: DC 0 – 32 V, 1,2 A
Power: max� 100 W
Weight Power unit: 1,7 kg
Dimensions Power unit: W115 x D147 x H96 mm
Weight Foot control: 585 g

REF
DPU3
