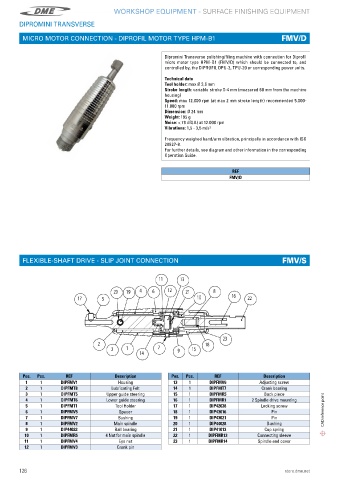

Page 128 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
DIPROMINI TRANSVERSE
MICRO MOTOR CONNECTION - DIPROFIL MOTOR TYPE HPM-B1 FMV/D

Dipromini Transverse polishing/filing machine with connection for Diprofil
micro motor type HPM-B1 (FMV/D) which should be connected to, and
controlled by, the DIPROFIL DPU-3, TPU-20 or corresponding power units�

Technical data
Tool holder: max Ø 3,6 mm
Stroke length: variable stroke 0-4 mm (measured 60 mm from the machine
housing)
Speed: max 12�000 rpm (at max 2 mm stroke length) recommended 5�000-
11�000 rpm
Dimension: Ø 24 mm
Weight: 195 g
Noise: < 78 dB(A) at 12�000 rpm
Vibrations: 1,5 - 3,5 m/s²

Frequency weighed hand/arm vibration, principally in accordance with ISO
28927-8�
For further details, see diagram and other information in the corresponding
Operation Guide�

REF
FMV/D

FLEXIBLE-SHAFT DRIVE - SLIP JOINT CONNECTION FMV/S

11 13
20 19 4 6 12 21 8
17 5 10 16 22

23
2 18
3 1 7 9 15
14

Pos. Pcs. REF Description Pos. Pcs. REF Description
1 1 DIPFMV1 Housing 13 1 DIPFMV6 Adjusting screw
2 1 DIPFMT8 Lubricating Felt 14 1 DIPFMT7 Crank bearing
3 1 DIPFMT5 Upper guide steering 15 1 DIPFMR5 Back piece
4 1 DIPFMT6 Lower guide steering 16 1 DIPFMR1 2 Spindle drive mounting
5 1 DIPFMT1 Tool Holder 17 1 DIP42038 Locking screw
6 1 DIPFMV5 Spacer 18 1 DIP43016 Pin CAD reference point
7 1 DIPFMV7 Bushing 19 1 DIP43021 Pin
8 1 DIPFMV2 Main spindle 20 1 DIP44028 Bushing
9 1 DIP44022 Ball bearing 21 1 DIP41013 Cup spring
10 1 DIPFMR5 4 Nut for main spindle 22 1 DIPFMR13 Connecting sleeve
11 1 DIPFMV4 Eye nut 23 1 DIPFMR14 Spindle end cover
12 1 DIPFMV3 Crank pin
