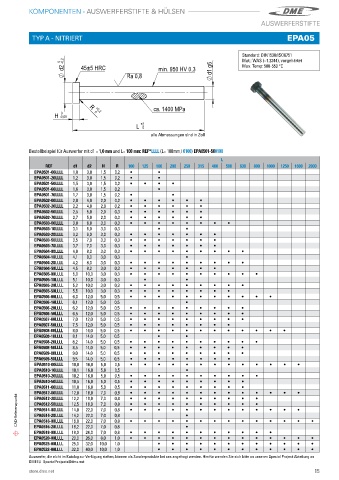

Page 17 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - AUSWERFERSTIFTE & HÜLSEN
AUSWERFERSTIFTE

TYP A - NITRIERT EPA05

Standard: DIN1530/ISO6751
0,2 Mat�: WAS (~1�2344), vorgehärtet
d2 - 0 45±5 HRC min. 950 HV 0,3 d1 g6 Max� Temp: 500-550 °C

Ra 0,8

ca. 1400 MPa
0
+0,2
R 0
H -0,05
+2
L 0
alle Abmessungen sind in Zoll
Bestellbeispiel für Auswerfer mit d1 = 1,0 mm and L= 100 mm: REF*LLLL (L= 100mm / 0100) EPA0501-500100
L
REF d1 d2 H R 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000
EPA0501-00LLLL 1,0 3,0 1,5 0,2 i i
EPA0501-20LLLL 1,2 3,0 1,5 0,2 i i
EPA0501-50LLLL 1,5 3,0 1,5 0,2 i i i i
EPA0501-60LLLL 1,6 3,0 1,5 0,2 i
EPA0501-70LLLL 1,7 3,0 1,5 0,2 i i
EPA0502-00LLLL 2,0 4,0 2,0 0,2 i i i i i i
EPA0502-20LLLL 2,2 4,0 2,0 0,2 i i i i i i
EPA0502-50LLLL 2,5 5,0 2,0 0,3 i i i i i i
EPA0502-70LLLL 2,7 5,0 2,0 0,3 i i i i i i
EPA0503-00LLLL 3,0 6,0 3,0 0,3 i i i i i i i i
EPA0503-10LLLL 3,1 6,0 3,0 0,3 i i
EPA0503-20LLLL 3,2 6,0 3,0 0,3 i i i i i i i
EPA0503-50LLLL 3,5 7,0 3,0 0,3 i i i i i i i
EPA0503-70LLLL 3,7 7,0 3,0 0,3 i i i i i i i
EPA0504-00LLLL 4,0 8,0 3,0 0,3 i i i i i i i i i
EPA0504-10LLLL 4,1 8,0 3,0 0,3 i
EPA0504-20LLLL 4,2 8,0 3,0 0,3 i i i i i i i i i
EPA0504-50LLLL 4,5 8,0 3,0 0,3 i i i i i i i
EPA0505-00LLLL 5,0 10,0 3,0 0,3 i i i i i i i i i i
EPA0505-10LLLL 5,1 10,0 3,0 0,3 i i
EPA0505-20LLLL 5,2 10,0 3,0 0,3 i i i i i i i i i
EPA0505-50LLLL 5,5 10,0 3,0 0,3 i i i i i i i i
EPA0506-00LLLL 6,0 12,0 5,0 0,5 i i i i i i i i i i i
EPA0506-10LLLL 6,1 12,0 5,0 0,5 i
EPA0506-20LLLL 6,2 12,0 5,0 0,5 i i i i i i i i i
EPA0506-50LLLL 6,5 12,0 5,0 0,5 i i i i i i i i i
EPA0507-00LLLL 7,0 12,0 5,0 0,5 i i i i i i i i i
EPA0507-50LLLL 7,5 12,0 5,0 0,5 i i i i i i i i
EPA0508-00LLLL 8,0 14,0 5,0 0,5 i i i i i i i i i i i i
EPA0508-10LLLL 8,1 14,0 5,0 0,5 i i
EPA0508-20LLLL 8,2 14,0 5,0 0,5 i i i i i i i i i i
EPA0508-50LLLL 8,5 14,0 5,0 0,5 i i i i i i i i i
EPA0509-00LLLL 9,0 14,0 5,0 0,5 i i i i i i i i i
EPA0509-50LLLL 9,5 14,0 5,0 0,5 i i i i i i i i
EPA0510-00LLLL 10,0 16,0 5,0 0,5 i i i i i i i i i i i i i
EPA0510-10LLLL 10,1 16,0 5,0 0,5 i
EPA0510-20LLLL 10,2 16,0 5,0 0,5 i i i i i i i i i i
EPA0510-50LLLL 10,5 16,0 5,0 0,5 i i i i i i i i i
EPA0511-00LLLL 11,0 16,0 5,0 0,5 i i i i i i i i i
EPA0512-00LLLL 12,0 18,0 7,0 0,8 i i i i i i i i i i i i i
CAD-Referenzpunkt EPA0512-50LLLL 12,5 18,0 7,0 0,8 i i i i i i i i i i i i i i
0,8
7,0
EPA0512-20LLLL
18,0
12,2
i
i
i
i
i
i
i
i
i
i
0,8
7,0
14,0
22,0
i
i
i
i
i
i
i
i
i
EPA0514-00LLLL
i
14,2
0,8
EPA0514-20LLLL
22,0
7,0
i
EPA0516-00LLLL
0,8
22,0
7,0
16,0
i
i
i
i
i
i
i
i
i
i
i
i
i
EPA0516-20LLLL
7,0
18,0
EPA0518-00LLLL 16,2 22,0 7,0 0,8 i i i i i i i i i i i
0,8
24,0
i
EPA0520-00LLLL 20,0 26,0 8,0 1,0 i i i i i i i i i i i i i i
EPA0525-00LLLL 25,0 32,0 10,0 1,0 i i i i i i i i i i i i
EPA0532-00LLLL 32,0 40,0 10,0 1,0 i i i i i i i i i i i i
Auswerfer, die nicht im Katalog zur Verfügung stehen, können als Sonderprodukte bei uns angefragt werden� Hierfür wenden Sie sich bitte an unseren Special Project Abteilung an
DMEEU_SpecialProjects@dme�net
store.dme.net 15
