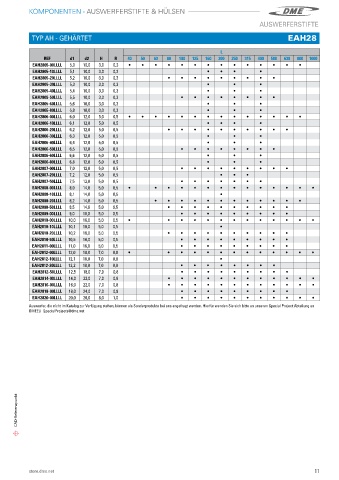

Page 13 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - AUSWERFERSTIFTE & HÜLSEN
AUSWERFERSTIFTE

TYP AH - GEHÄRTET EAH28

L
REF d1 d2 H R 40 50 63 80 100 125 160 200 250 315 400 500 630 800 1000
EAH2805-00LLLL 5,0 10,0 3,0 0,3 i i i i i i i i i i i i i i
EAH2805-10LLLL 5,1 10,0 3,0 0,3 i i i i
EAH2805-20LLLL 5,2 10,0 3,0 0,3 i i i i i i i i i
EAH2805-30LLLL 5,3 10,0 3,0 0,3 i i i
EAH2805-40LLLL 5,4 10,0 3,0 0,3 i i i
EAH2805-50LLLL 5,5 10,0 3,0 0,3 i i i i i i i i
EAH2805-60LLLL 5,6 10,0 3,0 0,3 i i i
EAH2805-80LLLL 5,8 10,0 3,0 0,3 i i i
EAH2806-00LLLL 6,0 12,0 5,0 0,5 i i i i i i i i i i i i i i
EAH2806-10LLLL 6,1 12,0 5,0 0,5 i i i i
EAH2806-20LLLL 6,2 12,0 5,0 0,5 i i i i i i i i i i
EAH2806-30LLLL 6,3 12,0 5,0 0,5 i i i
EAH2806-40LLLL 6,4 12,0 5,0 0,5 i i i
EAH2806-50LLLL 6,5 12,0 5,0 0,5 i i i i i i i i
EAH2806-60LLLL 6,6 12,0 5,0 0,5 i i i
EAH2806-80LLLL 6,8 12,0 5,0 0,5 i i i
EAH2807-00LLLL 7,0 12,0 5,0 0,5 i i i i i i i i i
EAH2807-20LLLL 7,2 12,0 5,0 0,5 i i i
EAH2807-50LLLL 7,5 12,0 5,0 0,5 i i i i i i i
EAH2808-00LLLL 8,0 14,0 5,0 0,5 i i i i i i i i i i i i i i
EAH2808-10LLLL 8,1 14,0 5,0 0,5 i
EAH2808-20LLLL 8,2 14,0 5,0 0,5 i i i i i i i i i i i i
EAH2808-50LLLL 8,5 14,0 5,0 0,5 i i i i i i i i i i
EAH2809-00LLLL 9,0 16,0 5,0 0,5 i i i i i i i i i
EAH2810-00LLLL 10,0 16,0 5,0 0,5 i i i i i i i i i i i i i
EAH2810-10LLLL 10,1 16,0 5,0 0,5 i
EAH2810-20LLLL 10,2 16,0 5,0 0,5 i i i i i i i i i i
EAH2810-50LLLL 10,5 16,0 5,0 0,5 i i i i i i i i i
EAH2811-00LLLL 11,0 16,0 5,0 0,5 i i i i i i i i i
EAH2812-00LLLL 12,0 18,0 7,0 0,8 i i i i i i i i i i i i i
EAH2812-10LLLL 12,1 18,0 7,0 0,8 i
EAH2812-20LLLL 12,2 18,0 7,0 0,8 i i i i i i i i
EAH2812-50LLLL 12,5 18,0 7,0 0,8 i i i i i i i i i
EAH2814-00LLLL 14,0 22,0 7,0 0,8 i i i i i i i i i i i i
EAH2816-00LLLL 16,0 22,0 7,0 0,8 i i i i i i i i i i i i
EAH2818-00LLLL 18,0 24,0 7,0 0,8 i i i i i i i i i
EAH2820-00LLLL 20,0 26,0 8,0 1,0 i i i i i i i i i i i
Auswerfer, die nicht im Katalog zur Verfügung stehen, können als Sonderprodukte bei uns angefragt werden� Hierfür wenden Sie sich bitte an unseren Special Project Abteilung an
DMEEU_SpecialProjects@dme�net

CAD-Referenzpunkt
