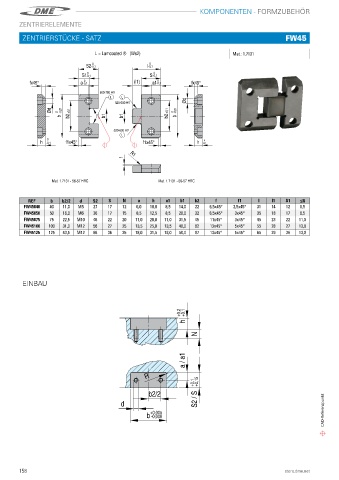

Page 160 - DME Hochprazise Formkomponenten Katalog
P. 160
KOMPONENTEN - FORMZUBEHÖR
ZENTRIERELEMENTE
ZENTRIERSTÜCKE - SATZ FW45
Installation
Mat�: 1�7131
REF b b2/2 d S2 S N a h a1 b1 b2 f f1 l l1 S1 ≤R
FW45040 40 11,0 M5 27 17 12 6,0 10,0 8,5 14,0 22 6,5x45° 2,5x45° 31 14 12 6,5
FW45050 50 16,0 M6 36 17 15 8,5 12,5 8,5 20,0 32 6,5x45° 3x45° 35 18 17 6,5
FW45075 75 22,5 M10 46 22 20 11,0 20,0 11,0 31,5 45 11x45° 3x45° 45 23 22 11,0
FW45100 100 31,0 M12 56 27 25 13,5 25,0 13,5 40,0 62 13x45° 5x45° 55 28 27 13,0
FW45125 125 43,5 M12 66 36 25 18,0 31,5 18,0 50,0 87 13x45° 5x45° 65 29 36 13,0
Installation
EINBAU
CAD-Referenzpunkt
158 store.dme.net
