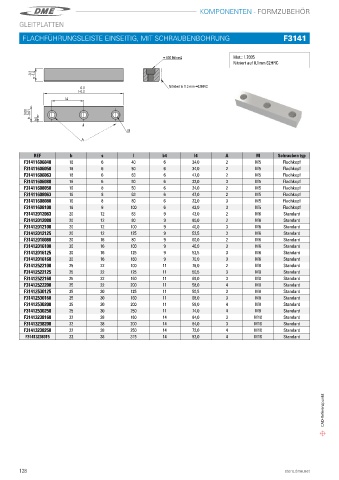

Page 130 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - FORMZUBEHÖR
GLEITPLATTEN

FLACHFÜHRUNGSLEISTE EINSEITIG, MIT SCHRAUBENBOHRUNG F3141
Density[g/cm3] : 7.73 Mat.: 1.8550

≈ 800 N/mm2 Mat�: 1�7035
Nitriert auf 0,1mm 62HRC
1.0 s - - 0.2

0.0 Nitrided to 0.3 mm ≈62HRC
l -0.2
l4

0.01 b - 0.00 b4

M
A

REF b s l b4 l4 A M Schrauben typ
F31411606040 16 6 40 6 24,0 2 M5 Flachkopf
F31411606050 16 6 50 6 34,0 2 M5 Flachkopf
F31411606063 16 6 63 6 47,0 2 M5 Flachkopf
F31411606080 16 6 80 6 32,0 3 M5 Flachkopf
F31411608050 16 8 50 6 34,0 2 M5 Flachkopf
F31411608063 16 8 63 6 47,0 2 M5 Flachkopf
F31411608080 16 8 80 6 32,0 3 M5 Flachkopf
F31411608100 16 8 100 6 42,0 3 M5 Flachkopf
F31412012063 20 12 63 9 43,0 2 M6 Standard
F31412012080 20 12 80 9 60,0 2 M6 Standard
F31412012100 20 12 100 9 40,0 3 M6 Standard
F31412012125 20 12 125 9 52,5 3 M6 Standard
F31412016080 20 16 80 9 60,0 2 M6 Standard
F31412016100 20 16 100 9 40,0 3 M6 Standard
F31412016125 20 16 125 9 52,5 3 M6 Standard
F31412016160 20 16 160 9 70,0 3 M6 Standard
F31412522100 25 22 100 11 76,0 2 M8 Standard
F31412522125 25 22 125 11 50,5 3 M8 Standard
F31412522160 25 22 160 11 68,0 3 M8 Standard
F31412522200 25 22 200 11 58,0 4 M8 Standard
F31412530125 25 30 125 11 50,5 3 M8 Standard
F31412530160 25 30 160 11 68,0 3 M8 Standard
F31412530200 25 30 200 11 58,0 4 M8 Standard
F31412530250 25 30 250 11 74,0 4 M8 Standard
F31413238160 32 38 160 14 64,0 3 M10 Standard
F31413238200 32 38 200 14 84,0 3 M10 Standard
F31413238250 32 38 250 14 72,0 4 M10 Standard
F31413238315 32 38 315 14 93,0 4 M10 Standard

CAD-Referenzpunkt
