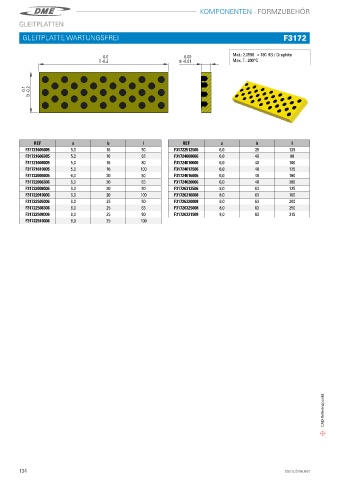

Page 136 - DME Hochprazise Formkomponenten Katalog
P. 136
KOMPONENTEN - FORMZUBEHÖR
GLEITPLATTEN Density[g/cm3]: 8.2 Mat.: 2.0598 ≈ 180 HB / Graphit / graphite
GLEITPLATTE WARTUNGSFREI F3172
0.0 0.00 Mat.: 2.0598 ≈ 180 HB / Graphite
l -0.2 s -0.01 Max� T�: 200°C
b -0.1 -0.2
REF s b l REF s b l
F31721605005 5,0 16 50 F31722512506 6,0 25 125
F31721606305 5,0 16 63 F31724008006 6,0 40 80
F31721608005 5,0 16 80 F31724010006 6,0 40 100
F31721610005 5,0 16 100 F31724012506 6,0 40 125
F31722005006 6,0 20 50 F31724016006 6,0 40 160
F31722006306 6,0 20 63 F31724020006 6,0 40 200
F31722008006 6,0 20 80 F31726312506 8,0 63 125
F31722010006 6,0 20 100 F31726316008 8,0 63 160
F31722505006 6,0 25 50 F31726320008 8,0 63 200
F31722506306 6,0 25 63 F31726325008 8,0 63 250
F31722508006 6,0 25 80 F31726331508 8,0 63 315
F31722510006 6,0 25 100
CAD-Referenzpunkt
