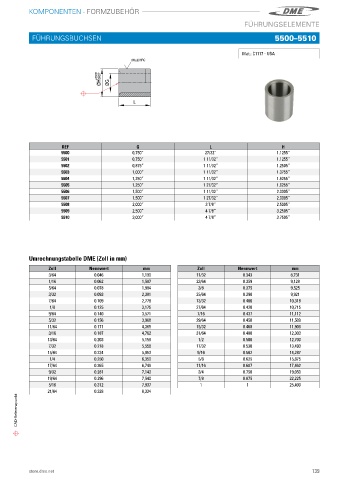

Page 141 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - FORMZUBEHÖR
FÜHRUNGSELEMENTE

FÜHRUNGSBUCHSEN 5500–5510

Mat�: C1117 - USA

REF G L H
5500 0,750” 27/32” 1�1255”
5501 0,750” 1 11/32” 1�1255”
5502 0,875” 1 11/32” 1�2505”
5503 1,000” 1 11/32” 1�3755”
5504 1,250” 1 11/32” 1�6255”
5505 1,250” 1 27/32” 1�6255”
5506 1,500” 1 11/32” 2�0005”
5507 1,500” 1 27/32” 2�0005”
5508 2,000” 3 7/8” 2�5005”
5509 2,500” 4 7/8” 3�2505”
5510 3,000” 4 7/8” 3�7505”

Umrechnungstabelle DME (Zoll in mm)
Zoll Nennwert mm Zoll Nennwert mm
3/64 0�046 1,190 11/32 0�343 8,731
1/16 0�062 1,587 23/64 0�359 9,128
5/64 0�078 1,984 3/8 0�375 9,525
3/32 0�093 2,381 25/64 0�390 9,921
7/64 0�109 2,778 13/32 0�406 10,318
1/8 0�125 3,175 27/64 0�420 10,715
9/64 0�140 3,571 7/16 0�437 11,112
5/32 0�156 3,968 29/64 0�450 11,509
11/64 0�171 4,365 15/32 0�468 11,906
3/16 0�187 4,762 31/64 0�480 12,303
13/64 0�203 5,159 1/2 0�500 12,700
7/32 0�218 5,556 17/32 0�530 13,493
15/64 0�234 5,953 9/16 0�562 14,287
1/4 0�250 6,350 5/8 0�625 15,875
17/64 0�265 6,746 11/16 0�687 17,462
9/32 0�281 7,143 3/4 0�750 19,050
19/64 0�296 7,540 7/8 0�875 22,225
5/16 0�312 7,937 1 1 25,400
21/64 0�328 8,334
CAD-Referenzpunkt
