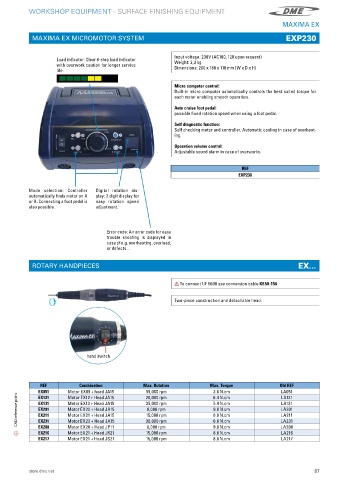

Page 89 - DME Workshop Equipment Catalogue 2023 EN

SURF
A
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
MAXIMA EX
MAXIMA EX MICROMOTOR SYSTEM EXP230

Input voltage: 230V (AC100, 120 upon request)
Load indicator: Clear 8-step load indicator Weight: 2,3 kg
with overwork caution for longer service Dimensions: 200 x 180 x 110 mm (W x D x H)
life�

Micro computer control:
Built-in micro computer automatically controls the best suited torque for
each motor enabling smooth operation�
Auto cruise foot pedal:
possible fixed rotation speed when using a foot pedal�

Self diagnostic function:
Self checking motor and controller� Automatic cooling in case of overheat-
ing�

Operation volume control:
Adjustable sound alarm in case of overworks�

REF
EXP230

Mode selection: Controller Digital rotation dis-
automatically finds motor on A play: 2 digit display for
or B� Connecting a foot pedal is easy rotation speed
also possible� adjustment�

Error code: An error code for easy
trouble shooting is displayed in
case of e�g� overheating, overload,
or defects���

ROTARY HANDPIECES EX...

To connect UF 5600 use conversion cable KE50-156

Two-piece construction and detachable head�

hand switch

REF Combination Max. Rotation Max. Torque Old REF
EX051 Motor EX05 + head JA15 55,000 rpm 3�6 N�cm LA051
CAD reference point EX131 Motor EX13 + Head JA15 35,000 rpm 5�4 N�cm LA201
20,000 rpm
Motor EX12 + Head JA15
LA121
6�4 N�cm
EX121
LA131
9�8 N�cm
EX201
Motor EX20 + Head JA15
8,000 rpm
EX211
8�8 N�cm
15,000 rpm
LA211
Motor EX21 + Head JA15
6�8 N�cm
Motor EX23 + Head JA15
30,000 rpm
LA231
EX231
EX208
8,000 rpm
Motor EX21 + Head JR21
LA216
8�8 N�cm
EX216 Motor EX20 + Head JP11 15,000 rpm 9�8 N�cm LA208
EX217 Motor EX21 + Head JS21 15,000 rpm 8�8 N�cm LA217
