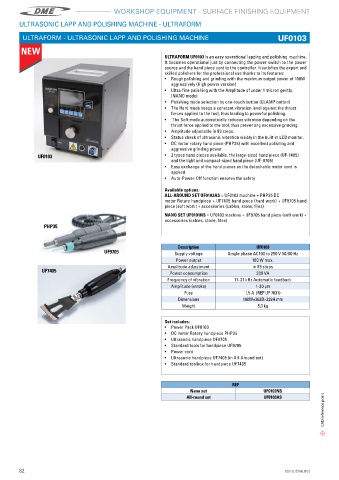

Page 84 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
ULTRASONIC LAPP AND POLISHING MACHINE - ULTRAFORM
ULTRAFORM - ULTRASONIC LAPP AND POLISHING MACHINE UF0103
NEW
NEW
ULTRAFORM UF0103 is an easy operational lapping and polishing machine�
It becomes operational just by connecting the power switch to the power
source and the hand piece cord to the controller� It satisfies the expert and
skilled polishers for the professional use thanks to its features:
• Rough polishing and grinding with the maximum output power of 100W
aggressively (High power version)
• Ultra-fine polishing with the Amplitude of under 1 micron gently�
(NANO mode)
• Polishing mode selection by one-touch button (CLAMP button)
• The Hard mode keeps a constant vibration level against the thrust
forces applied to the tool, thus leading to powerful polishing�
• The Soft mode automatically reduces vibration depending on the
thrust force applied to the tool, thus preventing excessive grinding�
• Amplitude adjustable in 99 steps�
• Status check of ultrasonic vibration visibly in the built-in LCD monitor�
• DC motor rotary hand piece (PHP35) with excellent polishing and
aggressive grinding power
UF0103 • 2 types hand pieces available, the large-sized hand piece (UF-7405)
and the light and compact-sized hand piece (UF-9705)
• Easy exchange of the hand pieces as the detachable motor cord is
applied�
• Auto-Power-Off function ensures the safety

Available options:
ALL-AROUND SET UF0103AS = UF0103 machine + PHP35 DC
motor Rotary handpiece + UF7405 hand piece (hard work) + UF9705 hand
piece (soft work) + accessories (cables, stone, files)
NANO SET UF0101NS = UF0103 machine + UF9705 hand piece (soft work) +
accessories (cables, stone, files)
PHP35

Description UF0103
UF9705 Supply voltage Single phase AC100 to 250 V 50/60 Hz
Power output 100 W max�
Amplitude adjustment in 99 steps
UF7405 Power consumption 300 VA
Frequency of vibration 17-31 kHz Automatic feedback
Amplitude (stroke) 1-30 µm
Fuse 1,5 A (REF UF 7031)
Dimensions 180W×263D×229H mm
Weight 5,3 kg

Set includes:
• Power Pack UF0103
• DC motor Rotary handpiece PHP35
• Ultrasonic handpiece UF9705
• Standard tools for handpiece UF9705
• Power cord
• Ultrasonic handpiece UF7405 (in All-Around set)
• Standard toolbox for handpiece UF7405

REF
Nano set UF0103NS
CAD reference point
All-round set UF0103AS
