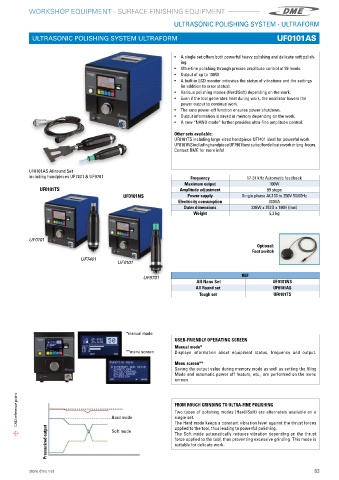

Page 85 - DME Workshop Equipment Catalogue 2023 EN

CE FINISHING EQUIPMENT
A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
ULTRASONIC POLISHING SYSTEM - ULTRAFORM
ULTRASONIC POLISHING SYSTEM ULTRAFORM UF0101AS

• A single set offers both powerful heavy polishing and delicate soft polish-
ing�
• Ultra-fine polishing through precise amplitude control at 99 levels�
• Output of up to 100W�
• A built-in LCD monitor indicates the status of vibrations and the settings
(in addition to error status)�
• Various polishing modes (Hard/Soft) depending on the work�
• Even if the tool generates heat during work, the oscillator lowers the
power output to continue work�
• The auto power-off function ensures power shutdown�
• Output information is saved in memory depending on the work�
• A new “NANO mode” further provides ultra-fine amplitude control�

Other sets available:
UF0101TS including large-sized handpiece UF7401 ideal for powerful work�
UF0101NS including handpiece UF7901 best suited for delicate work or long-hours�
Contact DME for more info!

UF0101AS Allround Set
including handpieces UF7401 & UF9701 Frequency 17-31 kHz Automatic feedback
Maximum output 100W
UF0101TS Amplitude adjustment 99 steps
UF0101NS Power supply Single phase AC100 to 250V 50/60Hz
Electricity consumption 300VA
Outer dimensions 226W x 252D x 180H (mm)
Weight 5,2 kg

UF0101
Optional:
Foot switch
UF7401
UF0101

UF9701 REF
All Nano Set UF0101NS
All Round set UF0101AS
Tough set UF0101TS

*manual mode
USER-FRIENDLY OPERATING SCREEN
Manual mode*
**menu screen Displays information about equipment status, frequency and output�

Menu screen**
Saving the output value during memory mode as well as setting the filing
Mode and automatic power off feature, etc�, are performed on the menu
screen�

CAD reference point Hard mode FROM ROUGH GRINDING TO ULTRA-FINE POLISHING

Two types of polishing modes (Hard/Soft) are alternately available on a
single set�
The Hard mode keeps a constant vibration level against the thrust forces
Pressurized output Soft mode applied to the tool, thus leading to powerful polishing�
The Soft mode automatically reduces vibration depending on the thrust
force applied to the tool, thus preventing excessive grinding� This mode is
suitable for delicate work�
