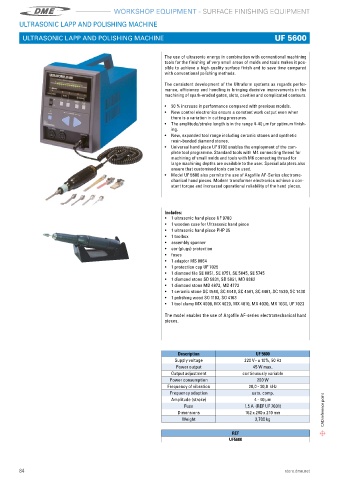

Page 86 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
A
SURF
CE FINISHING EQUIPMENT
ULTRASONIC LAPP AND POLISHING MACHINE
ULTRASONIC LAPP AND POLISHING MACHINE UF 5600

The use of ultrasonic energy in combination with conventional machining
tools for the finishing of very small areas of molds and tools makes it pos-
sible to achieve a high-quality surface finish and to save time compared
with conventional polishing methods�

The consistent development of the Ultraform systems as regards perfor-
mance, efficiency and handling is bringing decisive improvements in the
machining of spark-eroded gates, slots, cavities and complicated contours�

• 50 % increase in performance compared with previous models�
• New control electronics ensure a constant work output even when
there is a variation in cutting pressures.
• The amplitude/stroke length is in the range 4-40 µm for optimum finish-
ing�
• New, expanded tool range including ceramic stones and synthetic
resin-bonded diamond stones�
• Universal hand piece UF 9700 enables the employment of the com-
plete tool programme� Standard tools with M4 connecting thread for
machining of small molds and tools with M6 connecting thread for
large machining depths are available to the user� Special adapters also
ensure that customised tools can be used�
• Model UF 5600 also permits the use of Argofile AF-Series electrome-
chanical hand pieces� Modern transformer electronics achieve a con-
stant torque and increased operational reliability of the hand pieces�

Includes:
• 1 ultrasonic hand piece UF 9700
• 1 wooden case for Ultrasonic hand piece
• 1 ultrasonic hand piece PHP 35
• 1 toolbox
• assembly spanner
• ear (plugs) protection
• fuses
• 1 adaptor MS 0064
• 1 protection cap UF 7025
• 1 diamond file SE 8851, SE 8751, SE 5845, SE 5745
• 1 diamond stone SD 5831, SD 5851, MD 8862
• 1 diamond stone MD 4872, MD 4772
• 1 ceramic stone SC 4548, SC 4448, SC 4561, SC 4461, SC 1530, SC 1430
• 1 polishing wood SO 1103, SO 4163
• 1 tool clamp MX 4008, MX 4020, MX 4010, MX 4030, MX 1030, UF 7023
The model enables the use of Argofile AF-series electromechanical hand
pieces�

Description UF 5600
Supply voltage 220 V~ ± 10%, 50 Hz
Power output 45 W max�
Output adjustment continuously variable
Power consumption 200 W
Frequency of vibration 20,0 - 30,0 kHz
Frequency adaption auto� comp�
Amplitude (stroke) 4 - 40 µm
Fuse 1,5 A (REF UF 7031)
Dimensions 162 x 280 x 210 mm CAD reference point
Weight 3,700 kg

REF
UF5600
