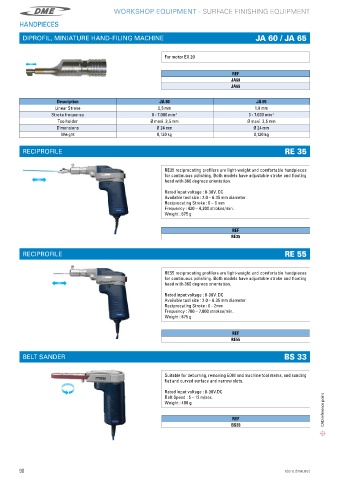

Page 92 - DME Workshop Equipment Catalogue 2023 EN

A
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
SURF
HANDPIECES
DIPROFIL, MINIATURE HAND-FILING MACHINE JA 60 / JA 65

For motor EX 20

REF
JA60
JA65

Description JA 60 JA 65
Linear Stroke 0,5 mm 1,8 mm
Stroke frequency 0 - 7�000 min -1 0 - 7�000 min -1
Toolholder Ø maxi� 3,5 mm Ø maxi� 3,5 mm
Dimensions Ø 24 mm Ø 24 mm
Weight 0,120 kg 0,120 kg

RECIPROFILE RE 35

RE35 reciprocating profilers are light-weight and comfortable handpieces
for continuous polishing� Both models have adjustable stroke and floating
head with 360 degrees orientation�

Rated input voltage : 0-30V� DC
Available tool size : 2�0 – 6�35 mm diameter�
Reciprocating Stroke : 0 – 6 mm
Frequency : 420 – 4,200 strokes/min�
Weight : 675 g

REF
RE35

RECIPROFILE RE 55

RE55 reciprocating profilers are light-weight and comfortable handpieces
for continuous polishing� Both models have adjustable stroke and floating
head with 360 degrees orientation�
Rated input voltage : 0-30V� DC
Available tool size : 2�0 – 6�35 mm diameter�
Reciprocating Stroke : 0 - 2mm
Frequency : 700 – 7,000 strokes/min�
Weight : 675 g

REF
RE55

BELT SANDER BS 33

Suitable for deburring, removing EDM and machine tool marks, and sanding
flat and curved surface and narrow slots�
Rated input voltage : 0-30V�DC
Belt Speed : 5 – 12 m/sec�
Weight : 400 g CAD reference point

REF
BS33

90 store.dme.net
