WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
POLISHING MACHINES

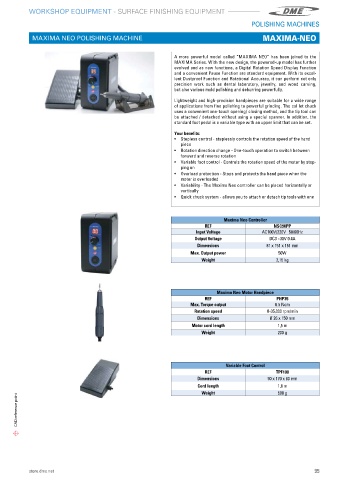

MAXIMA NEO POLISHING MACHINE MAXIMA-NEO

A more powerful model called “MAXIMA NEO” has been joined to the
MAXIMA Series� With the new design, the powered-up model has further
evolved and as new functions, a Digital Rotation Speed Display Function
and a convenient Pause Function are standard equipment� With its excel-
lent Dustproof Function and Rotational Accuracy, it can perform not only
precision work such as dental laboratory, jewelry, and wood carving,
but also various mold polishing and deburring powerfully�
Lightweight and high-precision handpieces are suitable for a wide range
of applications from fine polishing to powerful grinding� The col let chuck
uses a convenient one-touch opening/ closing method, and the tip tool can
be attached / detached without using a special spanner� In addition, the
standard foot pedal is a variable type with an upper limit that can be set�

Your benefits:
• Stepless control - steplessly controls the rotation speed of the hand
piece
• Rotation direction change - One-touch operation to switch between
forward and reverse rotation
• Variable foot control - Controls the rotation speed of the motor by step-
ping on
• Overload protection - Stops and protects the hand piece when the
motor is overloaded
• Variability - The Maxima Neo controller can be placed horizontally or
vertically
• Quick chuck system - allows you to attach or detach tip tools with one

Maxima Neo Controller
REF NSC90PP
Input Voltage AC100V/230V 50/60Hz
Output Voltage DC3 ~30V 0�4A
Dimensions 81 x 151 x 151 mm
Max. Output power 50W
Weight 2,15 kg

Maxima Neo Motor Handpiece
REF PHP35
Max. Torque output 6�5 Ncm
Rotation speed 0-35,000 rpm/min
Dimensions Ø 26 x 150 mm
Motor cord length 1,5 m
Weight 200 g

Variable Foot Control
REF TPF100
Dimensions 90 x 170 x 60 mm
Cord length 1,8 m
Weight 500 g
CAD reference point
