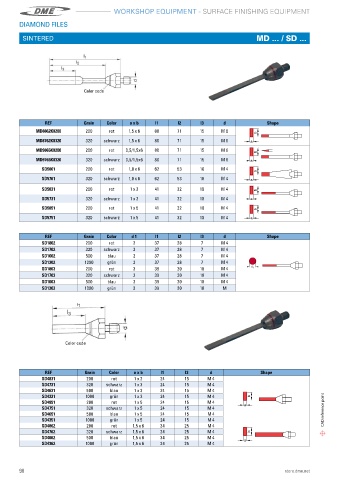

Page 100 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
DIAMOND FILES
SINTERED MD ... / SD ...

Color code

REF Grain Color a x b l1 l2 l3 d Shape
MD8862K0200 200 rot 1,5 x 6 80 71 15 M 6 b
MD8762K0320 320 schwarz 1,5 x 6 80 71 15 M 6 a
MD9865K0200 200 rot 0,5/1,5x6 80 71 15 M 6 b
MD9765K0320 320 schwarz 0,5/1,5x6 80 71 15 M 6 a
SD5861 200 rot 1,0 x 6 62 53 18 M 4
b
SD5761 320 schwarz 1,0 x 6 62 53 18 M 4 a

SD5831 200 rot 1 x 3 41 32 10 M 4 b
SD5731 320 schwarz 1 x 3 41 32 10 M 4 a
SD5851 200 rot 1 x 5 41 32 10 M 4 b
SD5751 320 schwarz 1 x 5 41 32 10 M 4 a

REF Grain Color d 1 l1 l2 l3 d Shape
SD1802 200 rot 2 37 28 7 M 4
SD1702 320 schwarz 2 37 28 7 M 4
SD1602 500 blau 2 37 28 7 M 4
SD1302 1000 grün 2 37 28 7 M 4
SD1803 200 rot 3 39 30 10 M 4 d 1
SD1703 320 schwarz 3 39 30 10 M 4
SD1603 500 blau 3 39 30 10 M 4
SD1303 1000 grün 3 39 30 10 M

Color code

REF Grain Color a x b l1 l3 d Shape
SD4831 200 rot 1 x 3 24 15 M 4
SD4731 320 schwarz 1 x 3 24 15 M 4
SD4631 500 blau 1 x 3 24 15 M 4
SD4331 1000 grün 1 x 3 24 15 M 4 b
SD4851 200 rot 1 x 5 24 15 M 4 a
SD4751 320 schwarz 1 x 5 24 15 M 4 CAD reference point
SD4651 500 blau 1 x 5 24 15 M 4
SD4351 1000 grün 1 x 5 24 15 M 4
SD4862 200 rot 1,5 x 6 34 25 M 4
SD4762 320 schwarz 1,5 x 6 34 25 M 4 b
SD4662 500 blau 1,5 x 6 34 25 M 4 a
SD4362 1000 grün 1,5 x 6 34 25 M 4

98 store.dme.net
