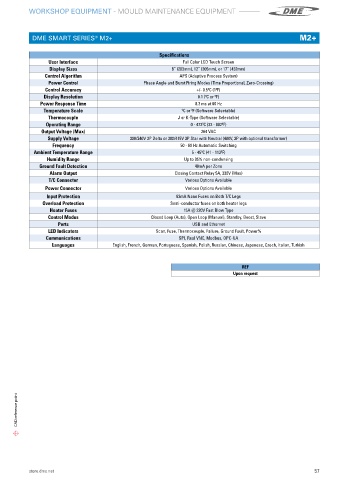

Page 59 - DME Workshop Equipment Catalogue 2023 EN

MOULD MAINTENANCE EQUIPMENT
WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT

DME SMART SERIES M2+ M2+
®
Specifications
User Interface Full Color LCD Touch Screen
Display Sizes 8” (203mm), 12” (305mm), or 17” (432mm)
Control Algorithm APS (Adaptive Process System)
Power Control Phase Angle and Burst Firing Modes (Time Proportional, Zero-Crossing)
Control Accuracy +/- 0.5 C (1 F)
0
0
Display Resolution 0.1 ( C or F)
0
0
Power Response Time 8.3 ms at 60 Hz
Temperature Scale 0 C or F (Software Selectable)
0
Thermocouple J or K-Type (Software Selectable)
Operating Range 0 - 472 C (32 - 882 F)
0
0
Output Voltage (Max) 264 VAC
Supply Voltage 200/240V 3P Delta or 380/415V 3P Star with Neutral (480V, 3P with optional transformer)
Frequency 50 - 60 Hz Automatic Switching
Ambient Temperature Range 5 - 45 C (41 - 113 F)
0
0
Humidity Range Up to 95% non-condensing
Ground Fault Detection 40mA per Zone
Alarm Output Closing Contact Relay 5A, 230V (Max)
T/C Connector Various Options Available
Power Connector Various Options Available
Input Protection 63mA Nano Fuses on Both T/C Legs
Overload Protection Semi-conductor fuses on both heater legs
Heater Fuses 15A @ 220V Fast Blow Type
Control Modes Closed Loop (Auto), Open Loop (Manual), Standby, Boost, Slave
Ports USB and Ethernet
LED Indicators Scan, Fuse, Thermocouple, Failure, Ground Fault, Power%
Communications SPI, Real VNC, Modbus, OPC-UA
Languages English, French, German, Portuguese, Spanish, Polish, Russian, Chinese, Japanese, Czech, Italian, Turkish

REF
Upon request
