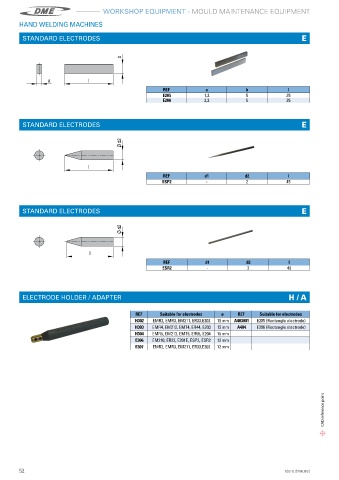

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
MOULD MAINTENANCE EQUIPMENT
HAND WELDING MACHINES
STANDARD ELECTRODES E
REF a b l
E205 1,2 5 35
E206 2,2 5 35
STANDARD ELECTRODES E
REF d1 d2 l
ESP2 - 2 45
STANDARD ELECTRODES E
REF d1 d2 l
ESR2 - 2 45
ELECTRODE HOLDER / ADAPTER H / A
REF Suitable for electrodes ø REF Suitable for electrodes
H302 EMR2, EMR3, EM211, ER33,E202 15 mm A403001 E205 (Rectangle electrode)
H303 EMR4, EM212, EMT4, ER44, E203 15 mm A404 E206 (Rectangle electrode)
H304 EMR5, EM213, EMT5, ER55, E204 15 mm
E306 EM210, ER22, E201E, ESP2, ESR2 12 mm
E307 EMR2, EMR3, EM211, ER33,E202 12 mm
CAD reference point
