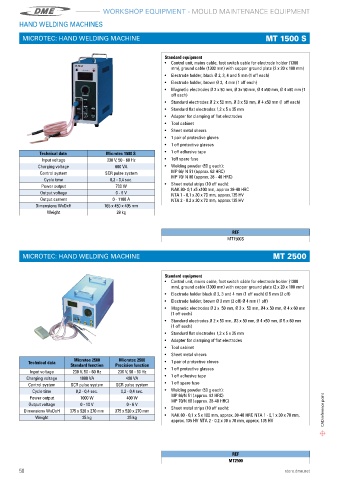

Page 52 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
MOULD MAINTENANCE EQUIPMENT
HAND WELDING MACHINES

MICROTEC: HAND WELDING MACHINE MT 1500 S

Standard equipment
• Control unit, mains cable, foot switch cable for electrode holder (1300
mm), ground cable (1300 mm) with copper ground plate (2 x 20 x 100 mm)
• Electrode holder, black Ø 2, 3, 4 and 5 mm (1 off each)
• Electrode holder, brown Ø 3, 4 mm (1 off each)
• Magnetic electrodes Ø 2 x 50 mm, Ø 3x 50 mm, Ø 4 x50 mm, Ø 4 x60 mm (1
off each)
• Standard electrodes Ø 2 x 50 mm, Ø 3 x 50 mm, Ø 4 x50 mm (1 off each)
• Standard flat electrodes 1,2 x 5 x 35 mm
• Adapter for clamping of flat electrodes
• Tool cabinet
• Sheet metal shears
• 1 pair of protective gloves
• 1 off protective glasses
Technical data Microtec 1500 S • 1 off adhesive tape
Input voltage 230 V, 50 - 60 Hz • 1off spare fuse
Charging voltage 600 VA • Welding powder (50 g each):
Control system SCR pulse system MP 66/ N 51 (approx� 63 HRC)
Cycle time 0,2 - 0,4 sec� MP 70/ N 80 (approx� 38 - 40 HRC)
Power output 700 W • Sheet metal strips (10 off each):
Output voltage 0 - 9 V NAK 80- 0,1 x5 x100 mm, approx 38-40 HRC
NTA 1 - 0,1 x 30 x 70 mm, approx�135 HV
Output current 0 - 1100 A NTA 2 - 0�2 x 30 x 70 mm, approx�135 HV
Dimensions WxDxH 165 x 450 x 405 mm
Weight 28 kg

REF
MT1500S

MICROTEC: HAND WELDING MACHINE MT 2500

Standard equipment
• Control unit, mains cable, foot switch câble for electrode holder (1300
mm), ground cable (1300 mm) with copper ground plate (2 x 20 x 100 mm)
• Electrode holder black Ø 2, 3 and 4 mm (1 off each) Ø 5 mm (2 off)
• Electrode holder, brown Ø 3 mm (2 off) Ø 4 mm (1 off)
• Magnetic electrodes Ø 2 x 50 mm, Ø 3 x 50 mm, Ø4 x 50 mm, Ø 4 x 60 mm
(1 off each)
• Standard electrodes Ø 2 x 50 mm, Ø3 x 50 mm, Ø 4 x50 mm, Ø 5 x 60 mm
(1 off each)
• Standard flat electrodes 1,2 x 5 x 35 mm
• Adapter for clamping of flat electrodes
• Tool cabinet
• Sheet metal shears
Microtec 2500 Microtec 2500
Technical data Standard function Precision function • 1 pair of protective cloves
Input voltage 230 V, 50 - 60 Hz 230 V, 50 - 60 Hz • 1 off protective glasses
Charging voltage 1000 VA 400 VA • 1 off adhesive tape
Control system SCR pulse system SCR pulse system • 1 off spare fuse
Cycle time 0,2 - 0,4 sec� 0,2 - 0,4 sec� • Welding powder (50 g each):
Power output 1000 W 400 W MP 66/N 51 (approx� 63 HRC)
MP 70/N 80 (approx� 38-40 HRC)
Output voltage 0 - 10 V 0 - 6 V
Dimensions WxDxH 375 x 520 x 270 mm 375 x 520 x 270 mm • Sheet metal strips (10 off each): CAD reference point
Weight 35 kg 35 kg • NAK 80 - 0,1 x 5 x 100 mm, approx� 38-40 HRC NTA 1 - 0,1 x 30 x 70 mm,
approx� 135 HV NTA 2 - 0�2 x 30 x 70 mm, approx� 135 HV

REF
MT2500
