WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
MOULD MAINTENANCE EQUIPMENT
WORKBENCH

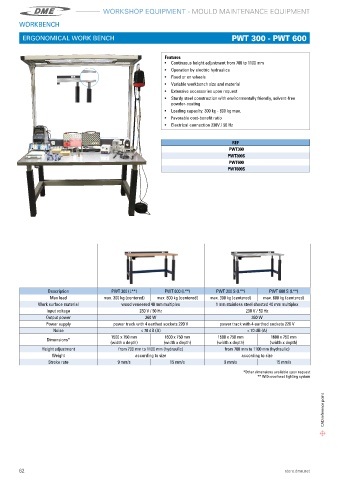

ERGONOMICAL WORK BENCH PWT 300 - PWT 600

Features
• Continuous height adjustment from 700 to 1100 mm
• Operation by electric hydraulics
• Fixed or on wheels
• Variable workbench size and material
• Extensive accessories upon request
• Sturdy steel construction with environmentally friendly, solvent-free
powder-coating
• Loading capacity: 300 kg - 600 kg max�
• Favorable cost-benefit ratio
• Electrical connection 230V / 50 Hz

REF
PWT300
PWT300S
PWT600
PWT600S

Description PWT 300 (L**) PWT 600 (L**) PWT 300 S (L**) PWT 600 S (L**)
Max load max� 300 kg (centered) max� 600 kg (centered) max� 300 kg (centered) max� 600 kg (centered)
Work surface material wood veneered 40 mm multiplex 1 mm stainless steel sheeted 40 mm multiplex
Input voltage 230 V / 50 Hz 230 V / 50 Hz
Output power 360 W 360 W
Power supply power track with 4 earthed sockets 220 V power track with 4 earthed sockets 220 V
Noise < 70 dB (A) < 70 dB (A)
1500 x 750 mm 1600 x 750 mm 1500 x 750 mm 1600 x 750 mm
Dimensions*
(width x depth) (width x depth) (width x depth) (width x depth)
Height adjustment from 700 mm to 1100 mm (hydraulic) from 700 mm to 1100 mm (hydraulic)
Weight according to size according to size
Stroke rate 9 mm/s 15 mm/s 9 mm/s 15 mm/s
*Other dimensions available upon request
** With overhead lighting system

CAD reference point
