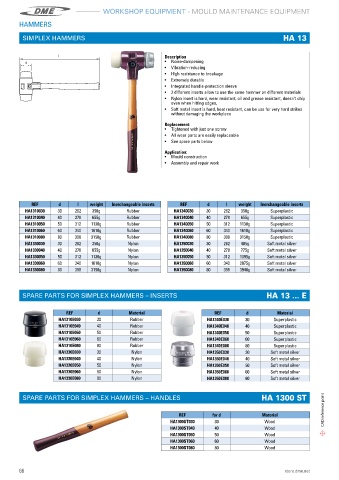

Page 68 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
MOULD MAINTENANCE EQUIPMENT
HAMMERS

SIMPLEX HAMMERS HA 13

l Description
d • Noise-dampening
• Vibration-reducing
• High resistance to breakage
• Extremely durable
• Integrated handle-protection sleeve
• 2 different inserts allow to use the same hammer on different materials
• Nylon insert is hard, wear resistant, oil and grease resistant, doesn’t chip
even when hitting edges,
• Soft metal insert is hard, heat resistant, can be use for very hard strikes
without damaging the workpiece

Replacement:
• Tightened with just one screw
• All wear parts are easily replaceable
• See spare parts below

Application:
• Mould construction
• Assembly and repair work

REF d l weight Inerchangeable inserts REF d l weight Inerchangeable inserts
HA1310030 30 262 350g Rubber HA1340030 30 262 350g Superplastic
HA1310040 40 278 655g Rubber HA1340040 40 278 655g Superplastic
HA1310050 50 312 1130g Rubber HA1340050 50 312 1130g Superplastic
HA1310060 60 340 1610g Rubber HA1340060 60 340 1610g Superplastic
HA1310080 80 398 3150g Rubber HA1340080 80 398 3150g Superplastic
HA1330030 30 262 350g Nylon HA1350030 30 262 405g Soft metal silver
HA1330040 40 278 655g Nylon HA1350040 40 278 775g Soft metal silver
HA1330050 50 312 1130g Nylon HA1350050 50 312 1395g Soft metal silver
HA1330060 60 340 1610g Nylon HA1350060 60 340 2075g Soft metal silver
HA1330080 80 398 3150g Nylon HA1350080 80 398 3940g Soft metal silver

SPARE PARTS FOR SIMPLEX HAMMERS – INSERTS HA 13 ... E

REF d Material REF d Material
HA1310E030 30 Rubber HA1340E030 30 Superplastic
HA1310E040 40 Rubber HA1340E040 40 Superplastic
HA1310E050 50 Rubber HA1340E050 50 Superplastic
HA1310E060 60 Rubber HA1340E060 60 Superplastic
HA1310E080 80 Rubber HA1340E080 80 Superplastic
HA1330E030 30 Nylon HA1350E030 30 Soft metal silver
HA1330E040 40 Nylon HA1350E040 40 Soft metal silver
HA1330E050 50 Nylon HA1350E050 50 Soft metal silver
HA1330E060 60 Nylon HA1350E060 60 Soft metal silver
HA1330E080 80 Nylon HA1350E080 80 Soft metal silver

SPARE PARTS FOR SIMPLEX HAMMERS – HANDLES HA 1300 ST

REF for d Material CAD reference point
HA1300ST030 30 Wood
HA1300ST040 40 Wood
HA1300ST050 50 Wood
HA1300ST060 60 Wood
HA1300ST080 80 Wood
