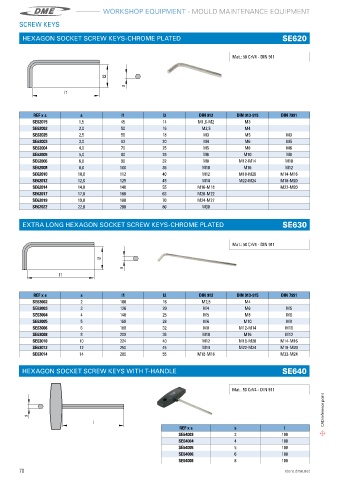

Page 72 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
MOULD MAINTENANCE EQUIPMENT
SCREW KEYS

HEXAGON SOCKET SCREW KEYS-CHROME PLATED SE620

Mat�: 50 CrV4 - DIN 911

REF x s s l1 l2 DIN 912 DIN 913-915 DIN 7991
SE62015 1,5 45 14 M1,6-M2 M3
SE62002 2,0 50 16 M2,5 M4
SE62025 2,5 56 18 M3 M5 M3
SE62003 3,0 63 20 M4 M6 M5
SE62004 4,0 70 25 M5 M8 M6
SE62005 5,0 80 28 M6 M10 M8
SE62006 6,0 90 32 M8 M12-M14 M10
SE62008 8,0 100 36 M10 M16 M12
SE62010 10,0 112 40 M12 M18-M20 M14-M16
SE62012 12,0 125 45 M14 M22-M24 M18-M20
SE62014 14,0 140 55 M16-M18 M22-M20
SE62017 17,0 160 63 M20-M22
SE62019 19,0 180 70 M24-M27
SE62022 22,0 200 80 M30

EXTRA LONG HEXAGON SOCKET SCREW KEYS-CHROME PLATED SE630

Mat�: 50 CrV4 - DIN 911

REF x s s l1 l2 DIN 912 DIN 913-915 DIN 7991
SE63002 2 100 16 M2,5 M4
SE63003 3 126 20 M4 M6 M5
SE63004 4 140 25 M5 M8 M6
SE63005 5 160 28 M6 M10 M8
SE63006 6 180 32 M8 M12-M14 M10
SE63008 8 200 36 M10 M16 M12
SE63010 10 224 40 M12 M18-M20 M14-M16
SE63012 12 250 45 M14 M22-M24 M18-M20
SE63014 14 280 55 M16-M18 M22-M24

HEXAGON SOCKET SCREW KEYS WITH T-HANDLE SE640

Mat�: 50 CrV4 - DIN 911
CAD reference point

REF x s s l
SE64003 3 100
SE64004 4 100
SE64005 5 100
SE64006 6 100
SE64008 8 100
