MOULD MAINTENANCE EQUIPMENT

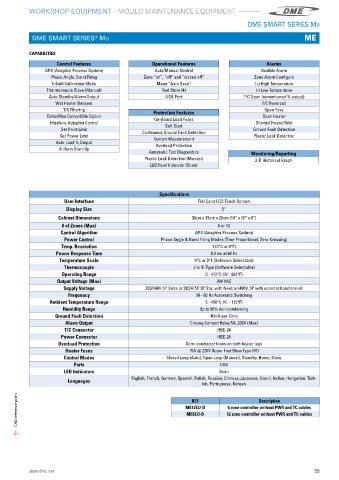

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
DME SMART SERIES Me
DME SMART SERIES Me ME
®
CAPABILITIES
Control Features Operational Features Alarms
APS (Adaptive Process System) Auto/Manual Control Audible Alarm
Phase Angle, Burst Firing Zone “on”, “off” and “locked off” Zone Alarm Configure
Infield Calibration Mode Menu “Auto Save” (+) High Temperature
Thermocouple Slave (Manual) Tool Store (4) (-) Low Temperature
Auto Standby/Alarm Output USB Port T/C Open (remembered % output)
Wet Heater Bakeout T/C Reversed
T/C Filtering Protection Features Open Fuse
Delta/Wye Convertible Option On-Board Load Fuses Open Heater
Interface Autopilot Control Soft Start Shorted Heater/Wet
Set Point Limit Continuous Ground Fault Detection Ground Fault Detection
Set Power Limit Plastic Leak Detection
Auto Load % Output Current Measurement
Overload Protection
Uniform Start-Up
Automatic Tool Diagnostics Monitoring/Reporting
Plastic Leak Detection (Manual) 2-D Historical Graph
LED Fault Indicator (Scan)
Specifications
User Interface Full Color LCD Touch Screen
Display Size 5”
Cabinet Dimensions 36cm x 39cm x 20cm (14” x 15” x 8”)
# of Zones (Max) 6 or 12
Control Algorithm APS (Adaptive Process System)
Power Control Phase Angle & Burst Firing Modes (Time Proportional, Zero-Crossing)
Temp. Resolution 1 (0°C or 0°F)
Power Response Time 8.3 ms at 60 Hz
Temperature Scale 0°C or 0°F (Software Selectable)
Thermocouple J or K-Type (Software Selectable)
Operating Range 0 - 472°C (32 - 882°F)
Output Voltage (Max) 264 VAC
Supply Voltage 200/240V 3P Delta or 380/415V 3P Star with Neutral (480V, 3P with optional transformer)
Frequency 50 - 60 Hz Automatic Switching
Ambient Temperature Range 5 - 450°C (41 - 113°F)
Humidity Range Up to 95% non-condensing
Ground Fault Detection 40mA per Zone
Alarm Output Closing Contact Relay 5A, 230V (Max)
T/C Connector HBE-24
Power Connector HBE-24
Overload Protection Semi-conductor fuses on both heater legs
Heater Fuses 15A @ 220V Super Fast Blow Type (FF)
Control Modes Closed Loop (Auto), Open Loop (Manual), Standby, Boost, Slave
Ports USB
LED Indicators Scan
English, French, German, Spanish, Polish, Russian, Chinese,Japanese, Czech, Italian, Hungarian, Turk-
Languages
ish, Portuguese, Korean
CAD reference point ME12EU-D 12 zone controller without PWR and TC cables
REF
Description
6 zone controller without PWR and TC cables
ME6EU-D
