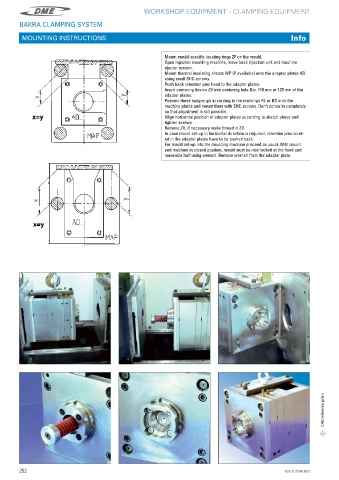

Page 254 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - CLAMPING EQUIPMENT
CLAMPING EQUIPMENT
BAKRA CLAMPING SYSTEM

MOUNTING INSTRUCTIONS Info

Mount mould-specific locating rings ZF on the mould�
Open injection moulding machine, move back injection unit and machine
ejector system�
Mount thermal insulating sheets WP (if available) onto the adapter plates AD
using small SHC-screws�
Push back retention pins fixed to the adapter plates�
Insert centering device ZV into centering hole Dia� 110 mm or 125 mm of the
adapter plates�
Position these subgroups according to the markings FS or BS onto the
machine plates and mount them with SHC-screws� Don’t screw in completely
so that adjustment is still possible�
Align horizontal position of adapter plates according to sketch above and
tighten screws�
Remove ZV, if necessary make thread in ZV�
In case mould set-up in horizontal direction is required, retention pins locat-
ed in the adapter plates have to be pushed back�
For mould set-up into the moulding machine proceed as usual� With mould
and machine in closed position, mould must be interlocked at the fixed and
moveable half using wrench� Remove wrench from the adapter plate�

CAD reference point
