WORKSHOP EQUIPMENT - CLAMPING EQUIPMENT
CLAMPING EQUIPMENT
EJECTOR COUPLINGS

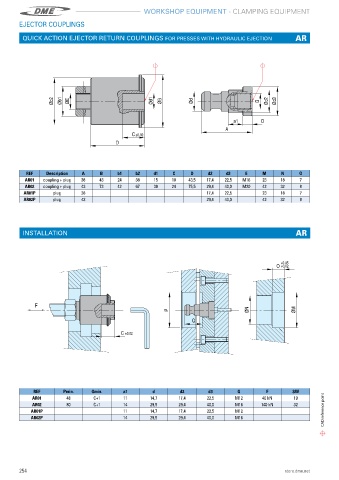

QUICK ACTION EJECTOR RETURN COUPLINGS FOR PRESSES WITH HYDRAULIC EJECTION AR
(incl. con
REF Description A B b1 b2 d1 C D d2 d3 E M N O
AR01 coupling + plug 38 43 24 38 15 18 43,5 17,4 22,5 M16 23 18 7
AR02 coupling + plug 43 73 42 67 30 24 75,5 29,4 40,0 M20 42 32 8
AR01P plug 38 17,4 22,5 23 18 7
AR02P plug 43 29,4 40,0 42 32 8
INSTALLATION AR
REF Pmin. Qmin. a1 d d2 d3 G F SW
AR01 48 C+1 11 14,7 17,4 22,5 M12 40 kN 19
AR02 80 C+1 14 29,5 29,4 40,0 M16 140 kN 32
AR01P 11 14,7 17,4 22,5 M12 CAD reference point
AR02P 14 29,5 29,4 40,0 M16
