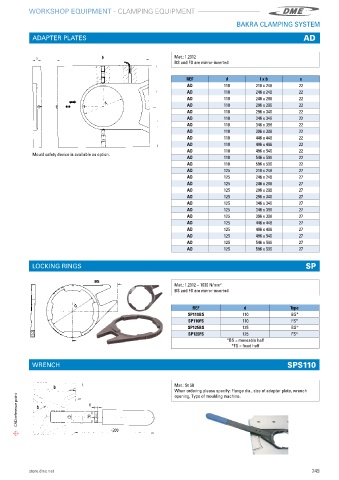

P. 251
CLAMPING EQUIPMENT
WORKSHOP EQUIPMENT - CLAMPING EQUIPMENT
BAKRA CLAMPING SYSTEM
ADAPTER PLATES AD
Mat.: 1.2312
BS and FS are mirror-inverted
REF d l x b s
AD 110 218 x 246 22
AD 110 246 x 246 22
AD 110 246 x 296 22
AD 110 296 x 296 22
AD 110 296 x 346 22
AD 110 346 x 346 22
AD 110 346 x 396 22
AD 110 396 x 396 22
AD 110 446 x 446 22
AD 110 496 x 496 22
AD 110 496 x 546 22
Mould safety device is available as option.
AD 110 546 x 596 22
AD 110 596 x 596 22
AD 125 218 x 246 27
AD 125 246 x 246 27
AD 125 246 x 296 27
AD 125 296 x 296 27
AD 125 296 x 346 27
AD 125 346 x 346 27
AD 125 346 x 396 27
AD 125 396 x 396 27
AD 125 446 x 446 27
AD 125 496 x 496 27
AD 125 496 x 546 27
AD 125 546 x 596 27
AD 125 596 x 596 27
LOCKING RINGS SP
Mat.: 1.2312 ~ 1030 N/mm 2
BS and FS are mirror-inverted
REF d Type
SP110BS 110 BS*
SP110FS 110 FS*
SP125BS 125 BS*
SP125FS 125 FS*
*BS = moveable half
*FS = fixed half
WRENCH SPS110
Mat�: St 50
When ordering please specify: Flange dia�, size of adapter plate, wrench
CAD reference point
opening, Type of moulding machine�
store.dme.net 249
