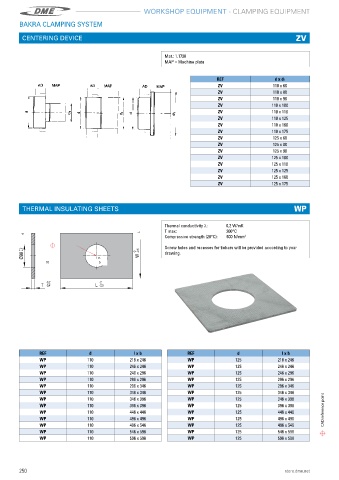

Page 252 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - CLAMPING EQUIPMENT
CLAMPING EQUIPMENT
BAKRA CLAMPING SYSTEM

CENTERING DEVICE ZV

Mat.: 1.1730
MAP = Machine plate

REF d x d1
ZV 110 x 60
ZV 110 x 80
ZV 110 x 90
ZV 110 x 100
ZV 110 x 110
ZV 110 x 125
ZV 110 x 160
ZV 110 x 175
ZV 125 x 60
ZV 125 x 80
ZV 125 x 90
ZV 125 x 100
ZV 125 x 110
ZV 125 x 125
ZV 125 x 160
ZV 125 x 175

THERMAL INSULATING SHEETS WP

Thermal conductivity λ: 0,2 W/mK
T max: 200°C
L
d
Compressive strength (20°C): 600 N/mm 2
+2 +1 +2 +1 Screw holes and recesses for tiebars will be provided according to your
+2 +1
drawing.
C
10 b

REF d l x b REF d l x b
WP 110 218 x 246 WP 125 218 x 246
WP 110 246 x 246 WP 125 246 x 246
WP 110 246 x 296 WP 125 246 x 296
WP 110 296 x 296 WP 125 296 x 296
WP 110 296 x 346 WP 125 296 x 346
WP 110 346 x 346 WP 125 346 x 346
WP 110 346 x 396 WP 125 346 x 396
WP 110 396 x 396 WP 125 396 x 396
WP 110 446 x 446 WP 125 446 x 446 CAD reference point
WP 110 496 x 496 WP 125 496 x 496
WP 110 496 x 546 WP 125 496 x 546
WP 110 546 x 596 WP 125 546 x 596
WP 110 596 x 596 WP 125 596 x 596
