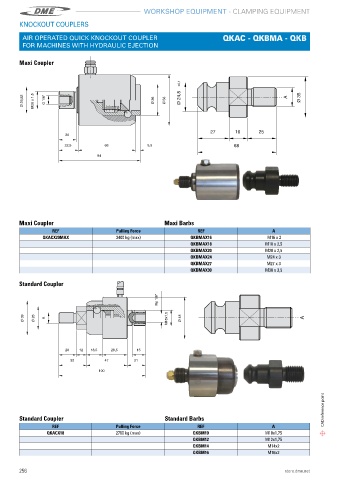

Page 258 - DME Workshop Equipment Catalogue 2023 EN

CLAMPING EQUIPMENT
WORKSHOP EQUIPMENT - CLAMPING EQUIPMENT
KNOCKOUT COUPLERS

AIR OPERATED QUICK KNOCKOUT COUPLER QKAC - QKBMA - QKB
FOR MACHINES WITH HYDRAULIC EJECTION

Maxi Coupler

±0,1

Ø 29,82 M20 x 1,5 G 1/8" Ø 36 Ø 58 Ø 24,8 A Ø 35

27 16 25
20
22,5 66 5,5 68

94

Maxi Coupler Maxi Barbs
REF Pulling Force REF A
QKACX20MAX 3400 kg (max) QKBMAX16 M16 x 2
QKBMAX18 M18 x 2,5
QKBMAX20 M20 x 2,5
QKBMAX24 M24 x 3
QKBMAX27 M27 x 3
QKBMAX30 M30 x 3,5
Standard Coupler

Rp 1/8"

Ø 39 Ø 26 A M18x1,5 Ø 48 A

20 12 18,5 28,5 15
32 47 21

100

CAD reference point

Standard Coupler Standard Barbs
REF Pulling Force REF A
QKACX18 2700 kg (max) QKBM10 M10x1,75
QKBM12 M12x1,75
QKBM14 M14x2
QKBM16 M16x2

256 store.dme.net
