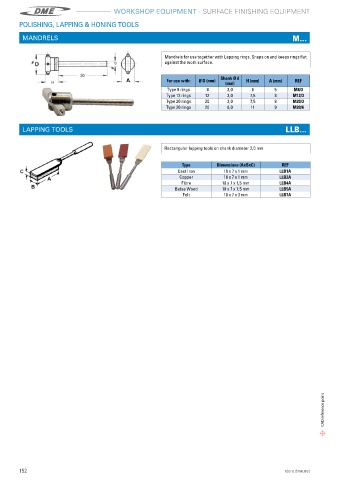

Page 154 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
A
CE FINISHING EQUIPMENT
SURF
POLISHING, LAPPING & HONING TOOLS
MANDRELS M...

Mandrels for use together with Lapping rings� Snaps on and keeps rings flat
against the work surface�

Shank Ø d
For use with: Ø D (mm) H (mm) A (mm) REF
(mm)
Type 8 rings 8 3,0 6 5 M8/3
Type 12 rings 12 3,0 7,5 8 M12/3
Type 20 rings 20 3,0 7,5 8 M20/3
Type 20 rings 20 6,0 11 9 M20/6

LAPPING TOOLS LLB...

Rectangular lapping tools on shank diameter 3,0 mm

Type Dimensions (AxBxC) REF
Cast Iron 18 x 7 x 1 mm LLB1A
Copper 18 x 7 x 1 mm LLB2A
Fibre 18 x 7 x 1,5 mm LLB4A
Balsa Wood 18 x 7 x 1,5 mm LLB5A
Felt 18 x 7 x 3 mm LLB7A

CAD reference point
