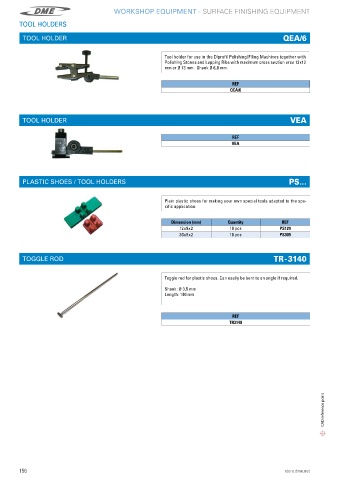

Page 158 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
TOOL HOLDERS
TOOL HOLDER QEA/6

Tool holder for use in the Diprofil Polishing/Filing Machines together with
Polishing Stones and Lapping Ribs with maximum cross section area 13x13
mm or Ø 13 mm� Shank Ø 6,0 mm�

REF
QEA/6

TOOL HOLDER VEA

REF
VEA

PLASTIC SHOES / TOOL HOLDERS PS...

Plain plastic shoes for making your own special tools adapted to the spe-
cific application�

Dimension (mm) Quantity REF
12x9x2 10 pcs PS129
30x9x2 10 pcs PS309

TOGGLE ROD TR - 3140

Toggle rod for plastic shoes� Can easily be bent to an angle if required�

Shank: Ø 3,5 mm
Length: 140 mm

REF
TR3140
