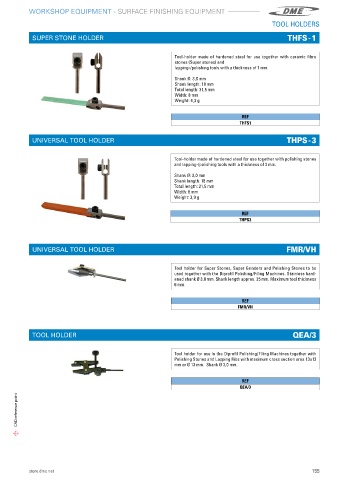

Page 157 - DME Workshop Equipment Catalogue 2023 EN

SURF
A
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
TOOL HOLDERS
SUPER STONE HOLDER THFS - 1

Tool-holder made of hardened steel for use together with ceramic fibre
stones (Super stones) and
lapping-/polishing tools with a thickness of 1 mm�

Shank Ø: 3,0 mm
Shank length: 18 mm
Total length: 31,5 mm
Width: 8 mm
Weight: 4,3 g

REF
THFS1

UNIVERSAL TOOL HOLDER THPS - 3

Tool-holder made of hardened steel for use together with polishing stones
and lapping-/polishing tools with a thickness of 3 mm�

Shank Ø: 3,0 mm
Shank length: 18 mm
Total length: 31,5 mm
Width: 8 mm
Weight: 3,9 g

REF
THPS3

UNIVERSAL TOOL HOLDER FMR/VH

Tool holder for Super Stones, Super Grinders and Polishing Stones to be
used together with the Diprofil Polishing/Filing Machines� Stainless hard-
ened shank Ø 3,0 mm� Shank length approx� 35 mm� Maximum tool thickness
6 mm�

REF
FMR/VH

TOOL HOLDER QEA/3

Tool holder for use in the Diprofil Polishing/Filing Machines together with
Polishing Stones and Lapping Ribs with maximum cross section area 13x13
mm or Ø 13 mm� Shank Ø 3,0 mm�

REF
QEA/3
CAD reference point
