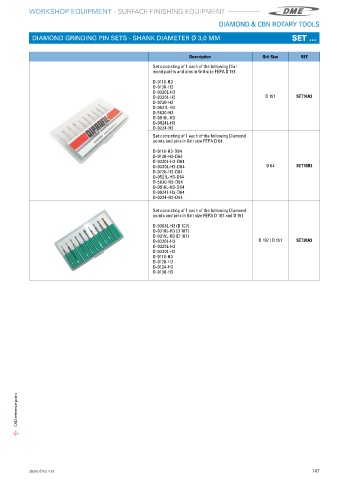

Page 149 - DME Workshop Equipment Catalogue 2023 EN

SURF
A
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
DIAMOND & CBN ROTARY TOOLS
DIAMOND GRINDING PIN SETS - SHANK DIAMETER Ø 3,0 MM SET ...

Description Grit Size REF
Set consisting of 1 each of the following Dia-
mond points and pins in Grit size FEPA D 151�

D-0116-H3
D-0130-H3
D-0320L-H3
D-0330L-H3 D 151 SET10A3
D-0720-H3
D-0521L-H3
D-5830-H3
D-0916L-H3
D-0924L-H3
D-0224-H3
Set consisting of 1 each of the following Diamond
points and pins in Grit size FEPA D 64�

D-0116-H3-D64
D-0130-H3-D64
D-0320L-H3-D64
D-0330L-H3-D64 D 64 SET10B3
D-0720-H3-D64
D-0521L-H3-D64
D-5830-H3-D64
D-0916L-H3-D64
D-0924L-H3-D64
D-0224-H3-D64

Set consisting of 1 each of the following Diamond
points and pins in Grit size FEPA D 107 and D 151�
D-0308L-H3 (D 107)
D-0310L-H3 (D 107)
D-0315L-H3 (D 107)
D-0320L-H3 D 107 / D 151 SET20A3
D-0325L-H3
D-0330L-H3
D-0116-H3
D-0120-H3
D-0124-H3
D-0130-H3

CAD reference point
