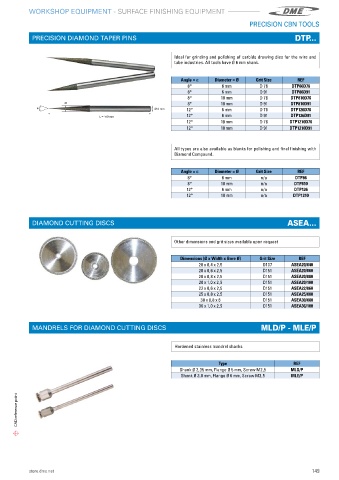

Page 151 - DME Workshop Equipment Catalogue 2023 EN

CE FINISHING EQUIPMENT
A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
PRECISION CBN TOOLS
PRECISION DIAMOND TAPER PINS DTP...

Ideal for grinding and polishing of carbide drawing dies for the wire and
tube industries� All tools have Ø 6 mm shank�

Angle = α Diameter = Ø Grit Size REF
8° 6 mm D 76 DTP86D76
8° 6 mm D 91 DTP86D91
8° 10 mm D 76 DTP810D76
Ø 8° 10 mm D 91 DTP810D91
α Ø 6 mm 12° 6 mm D 76 DTP126D76
L = 110 mm 12° 6 mm D 91 DTP126D91
12° 10 mm D 76 DTP1210D76
12° 10 mm D 91 DTP1210D91

All types are also available as blanks for polishing and final finishing with
Diamond Compound�

Angle = α Diameter = Ø Grit Size REF
8° 6 mm n/a DTP86
8° 10 mm n/a DTP810
12° 6 mm n/a DTP126
12° 10 mm n/a DTP1210

DIAMOND CUTTING DISCS ASEA...

Other dimensions and grit sizes available upon request

Dimensions (Ø x Width x Bore Ø) Grit Size REF
20 x 0,4 x 2,5 D107 ASEA20/040
20 x 0,6 x 2,5 D151 ASEA20/060
20 x 0,8 x 2,5 D151 ASEA20/080
20 x 1,0 x 2,5 D151 ASEA20/100
22 x 0,6 x 2,5 D151 ASEA22/060
25 x 0,8 x 2,5 D151 ASEA25/080
30 x 0,8 x 6 D151 ASEA30/080
36 x 1,0 x 2,5 D151 ASEA36/100

MANDRELS FOR DIAMOND CUTTING DISCS MLD/P - MLE/P

Hardened stainless mandrel shanks

Type REF
Shank Ø 2,35 mm, Flange Ø 5 mm, Screw M2,5 MLD/P
Shank Ø 3,0 mm, Flange Ø 6 mm, Screw M2,5 MLE/P

CAD reference point
